Straight, through-hole male pin header with 3 positions and 1 port, featuring a 4.19mm pitch. Constructed with a copper alloy contact material and tin plating, it offers a 400V AC and 565V DC voltage rating. The black polymer insulation material has a UL94 V-0 flammability rating, and the component operates within a -55°C to 105°C temperature range.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec IPBT-103-H1-T-S technical specifications.
General
| Color | Black |
| Contact Finish - Mating | TIN |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Depth | 6.58mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Length | 13.9mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 3 |
| Number of Ports | 1 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Pitch | 4.19mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Power Mate® IPBT |
| Termination | Solder |
| Voltage Rating (AC) | 400V |
| DC Rated Voltage | 565V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec IPBT-103-H1-T-S Datasheet
Download the complete datasheet for Samtec IPBT-103-H1-T-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

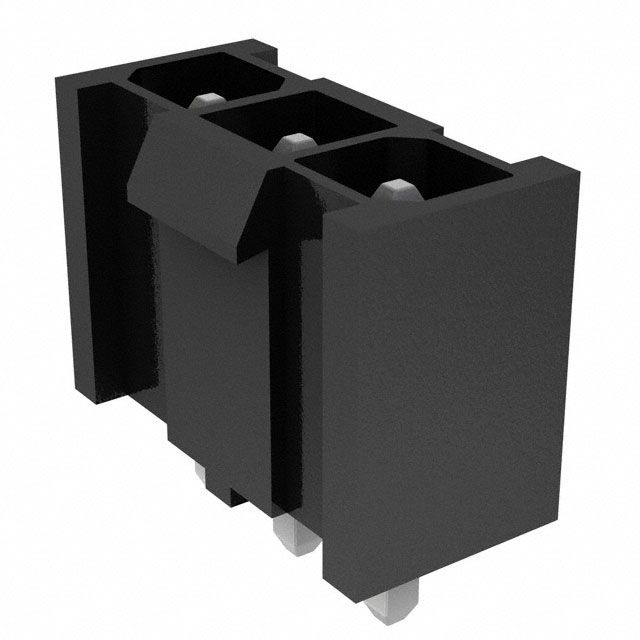

Product Images
