10-position, 2-row straight cable mount wire housing with a 2.54mm pitch. Features female socket contacts made of bronze with tin plating, supporting a maximum current rating of 7.4A and a voltage rating of 600V AC. Designed for crimp termination with a wire gauge range of 20-30AWG. Operates within a temperature range of -55°C to 125°C.
MountingFree Hanging
Quick Jump:
Technical Specifications
Samtec IPD1-05-D-K technical specifications.
General
Color
White
Contact Material
Bronze
Contact Plating
Tin
Contact Type
Female Socket
Depth
12.83mm
Gender
Receptacle
Length
14.1mm
Max Current Rating
7.4A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
600V
Mount
Free Hanging
Number of Contacts
10
Number of Positions
10
Number of Rows
2
Orientation
Straight
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Mini Mate® IPD1
Termination
Crimp
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
20AWG
Compliance
RoHS
Compliant
Datasheet
Samtec IPD1-05-D-K Datasheet
Download the complete datasheet for Samtec IPD1-05-D-K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

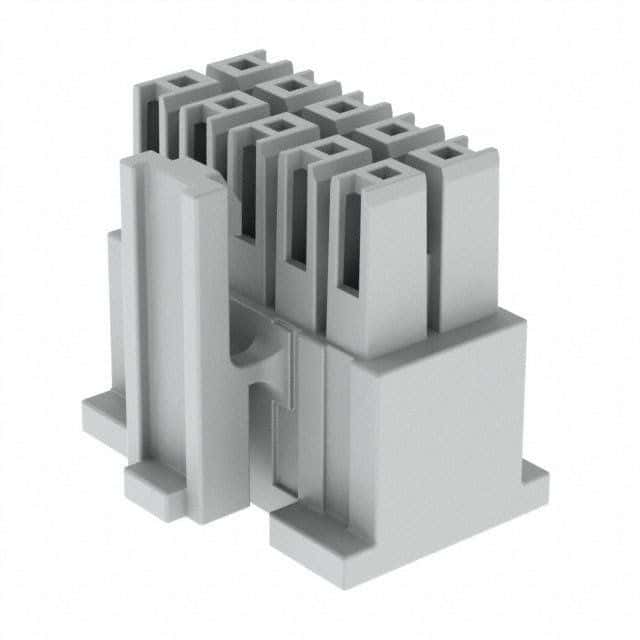

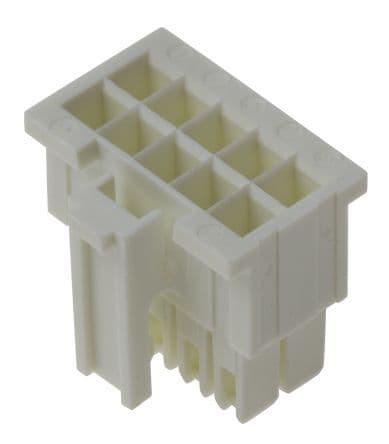

Product Images
