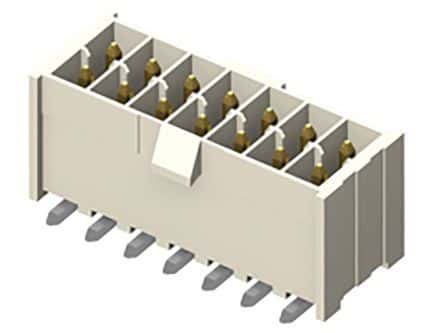

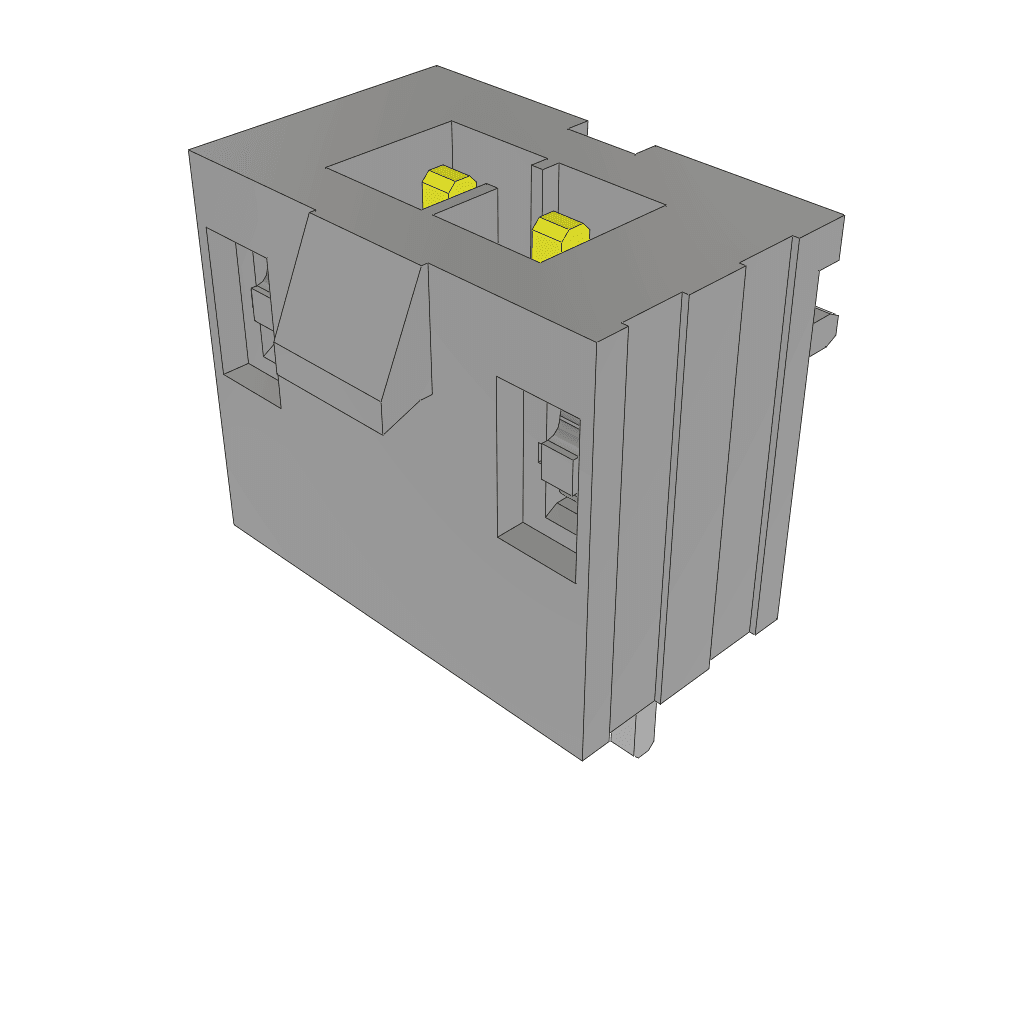

Right-angle, surface-mount wire-to-board header with 2 positions and 2 contacts. Features gold-plated bronze male pin contacts with a square shape and a 2.54mm pitch. Operates within a -55°C to 125°C temperature range, with a 675V AC and 954V DC voltage rating. Insulation is natural colored polymer, rated UL94 V-0 for flammability. Termination is solder.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec IPL1-102-02-L-SH-K technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Natural |
| Insulation Material | Polymer |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Mini Mate® IPL1 |
| Termination | Solder |
| Voltage Rating (AC) | 675V |
| DC Rated Voltage | 954V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec IPL1-102-02-L-SH-K Datasheet
Download the complete datasheet for Samtec IPL1-102-02-L-SH-K to view detailed technical specifications.
