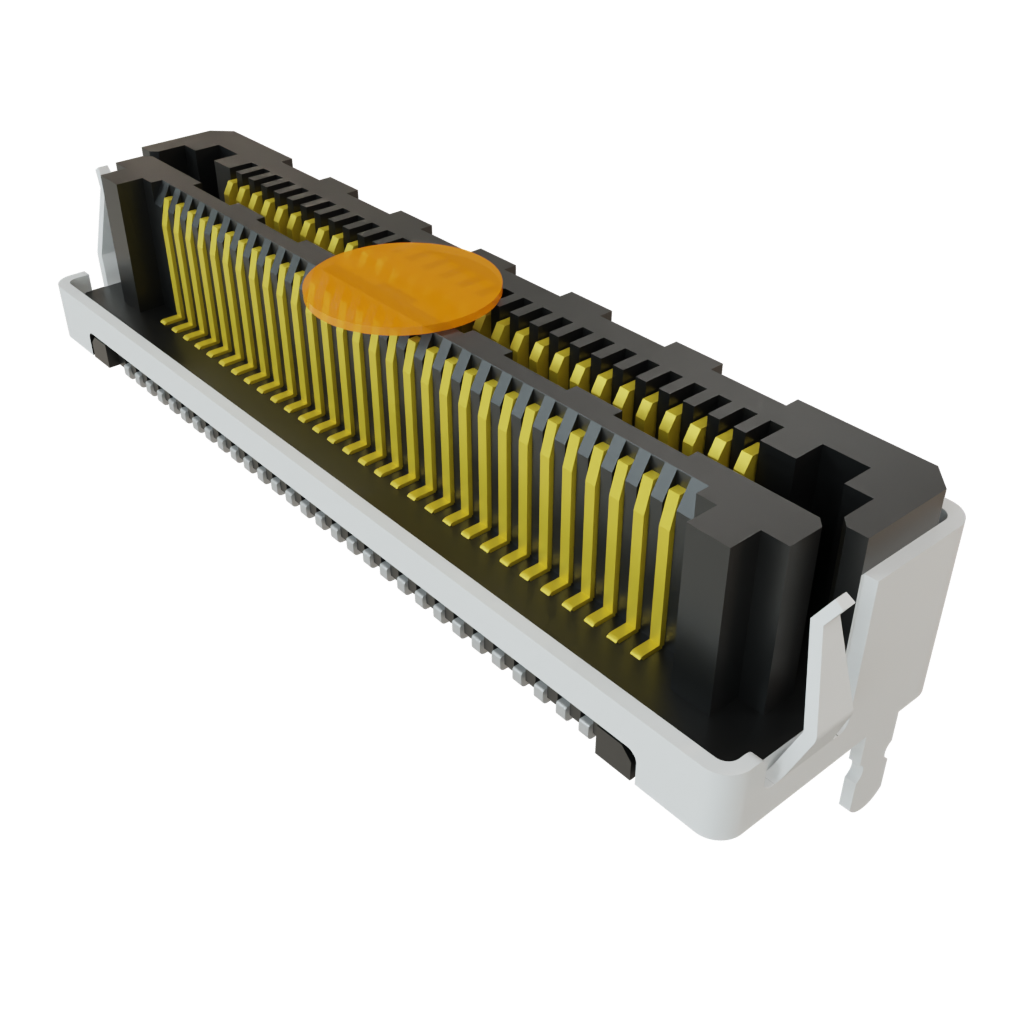

60-position, 2-row shrouded header and socket connector with 0.5mm pitch. Features gold-plated contacts, shielded design, and a mated stacking height of 8.5mm. Termination is via solder, suitable for surface mount technology. This RoHS compliant component is supplied on cut tape.
Quick Jump:
Technical Specifications
Samtec LSHM-130-02.5-F-DV-A-S-K-TR technical specifications.
General
| Contact Plating | Gold |
| Features | Shielded |
| Mated Stacking Heights | 8.5mm |
| Number of Contacts | 60 |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Packaging | Cut Tape |
| Pitch | 0.5mm |
| RoHS Compliant | Yes |
| Series | Razor Beam™ LSHM |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec LSHM-130-02.5-F-DV-A-S-K-TR Datasheet
Download the complete datasheet for Samtec LSHM-130-02.5-F-DV-A-S-K-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
