100-position, 2-row socket and terminal strip header with 0.5mm pitch. Features gold contact plating, shielded design, and a mated stacking height of 10mm. Top entry, SMD termination with solder connection. Packaged on tape and reel.
Quick Jump:
Technical Specifications
Samtec LSHM-150-04.0-L-DV-A-S-K-TR technical specifications.
General
| Contact Plating | Gold |
| Features | Shielded |
| Mated Stacking Heights | 10mm |
| Number of Contacts | 100 |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Packaging | Tape and Reel |
| Pitch | 0.5mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Razor Beam™ LSHM |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec LSHM-150-04.0-L-DV-A-S-K-TR Datasheet
Download the complete datasheet for Samtec LSHM-150-04.0-L-DV-A-S-K-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

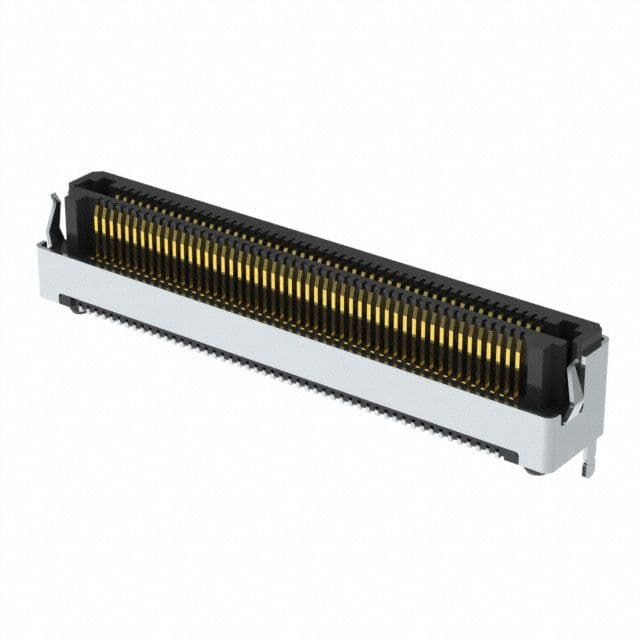

Product Images
