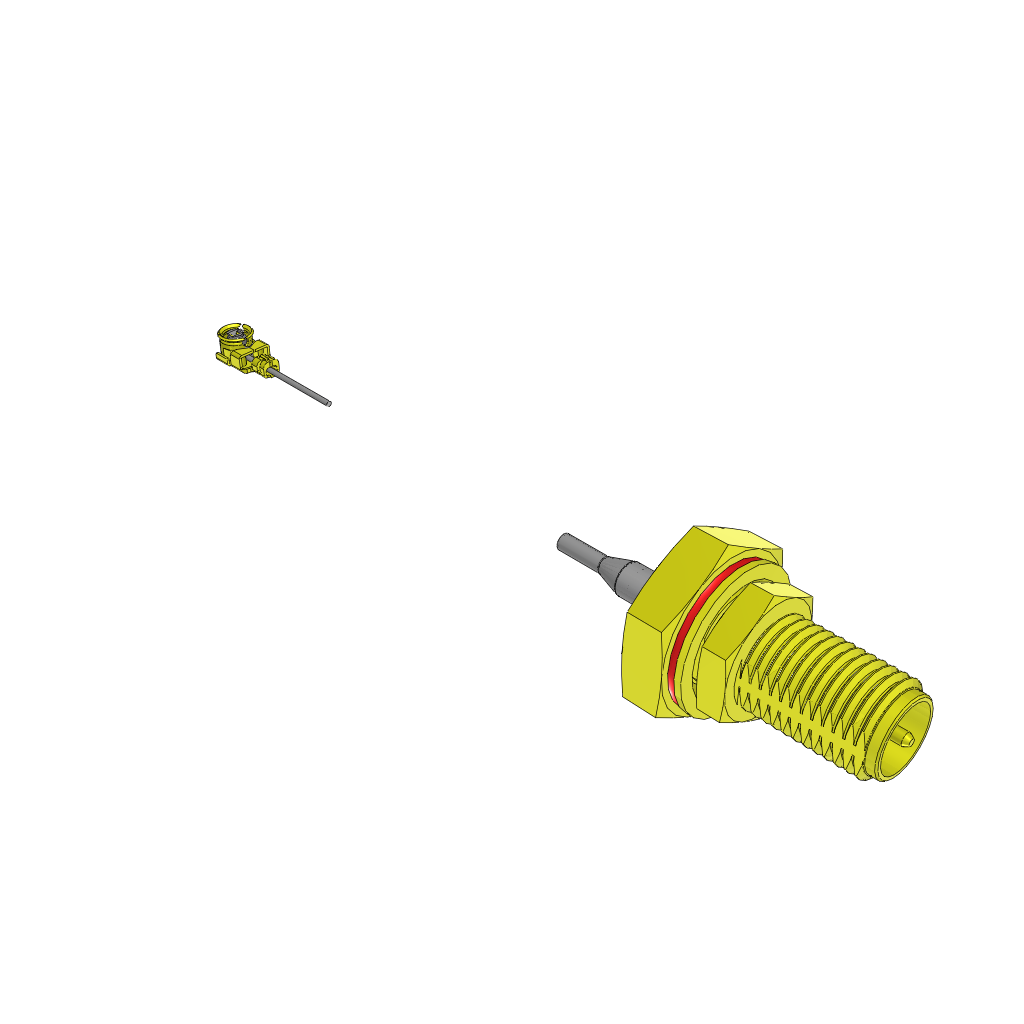

This Samtec coaxial cable assembly features a MHF1 male connector on one end and an SMA female connector on the other, with a silver plated copper conductor and a maximum operating temperature range of -40 to 90°C. The cable has a maximum outer diameter of 1.13mm and a size of 32. It is designed for high-frequency applications up to 32GHz.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Samtec MH113-MH1RP-01SR1-0300 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Cable Type | Coaxial |
| Gender | M-F |
| Connector Type B | SMA |
| Connector Type A | MHF1 |
| Size | 32AWG |
| Conductor Material | Silver Plated Copper |
| Maximum Outer Diameter | 1.13mm |
| Min Operating Temperature | -40°C |
| Max Operating Temperature | 90°C |
| RoHS | Yes |
| RoHS Version | 2011/65/EU |
Download the complete datasheet for Samtec MH113-MH1RP-01SR1-0300 to view detailed technical specifications.
