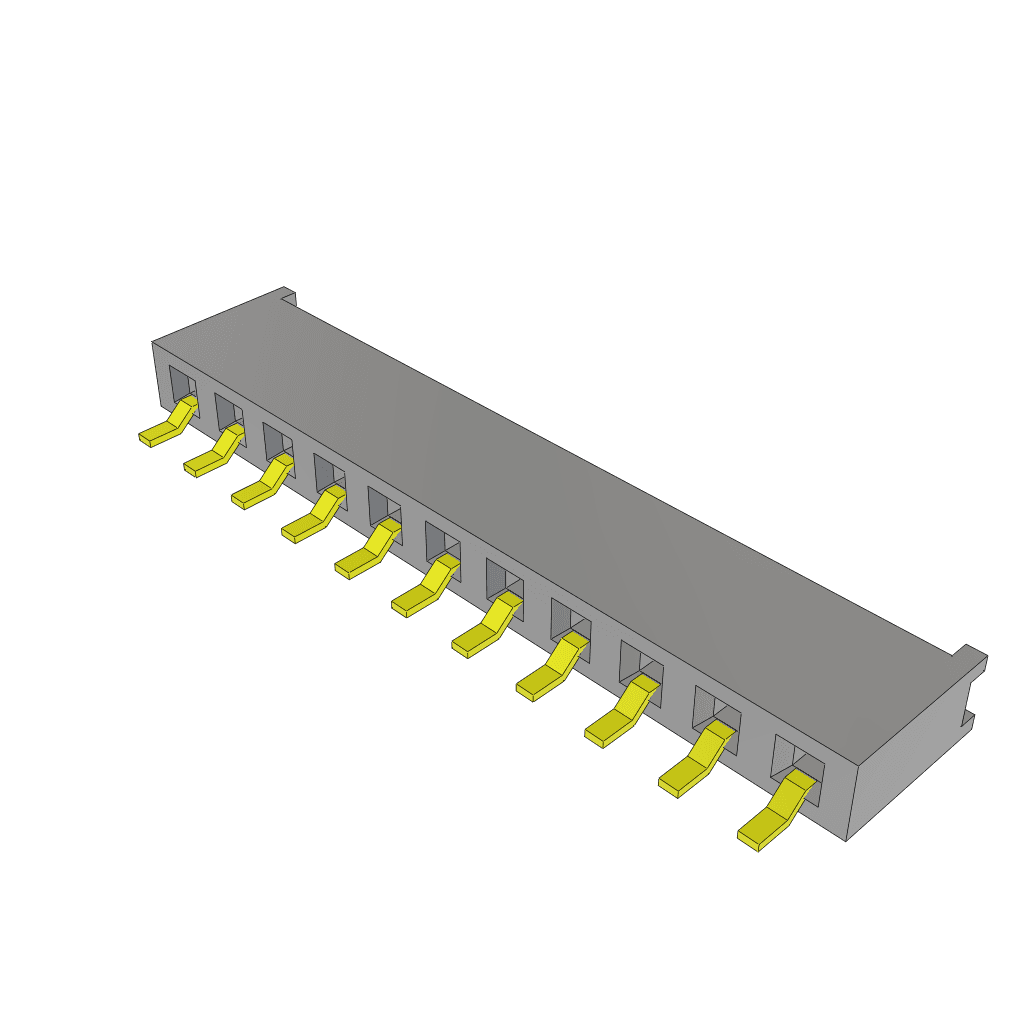

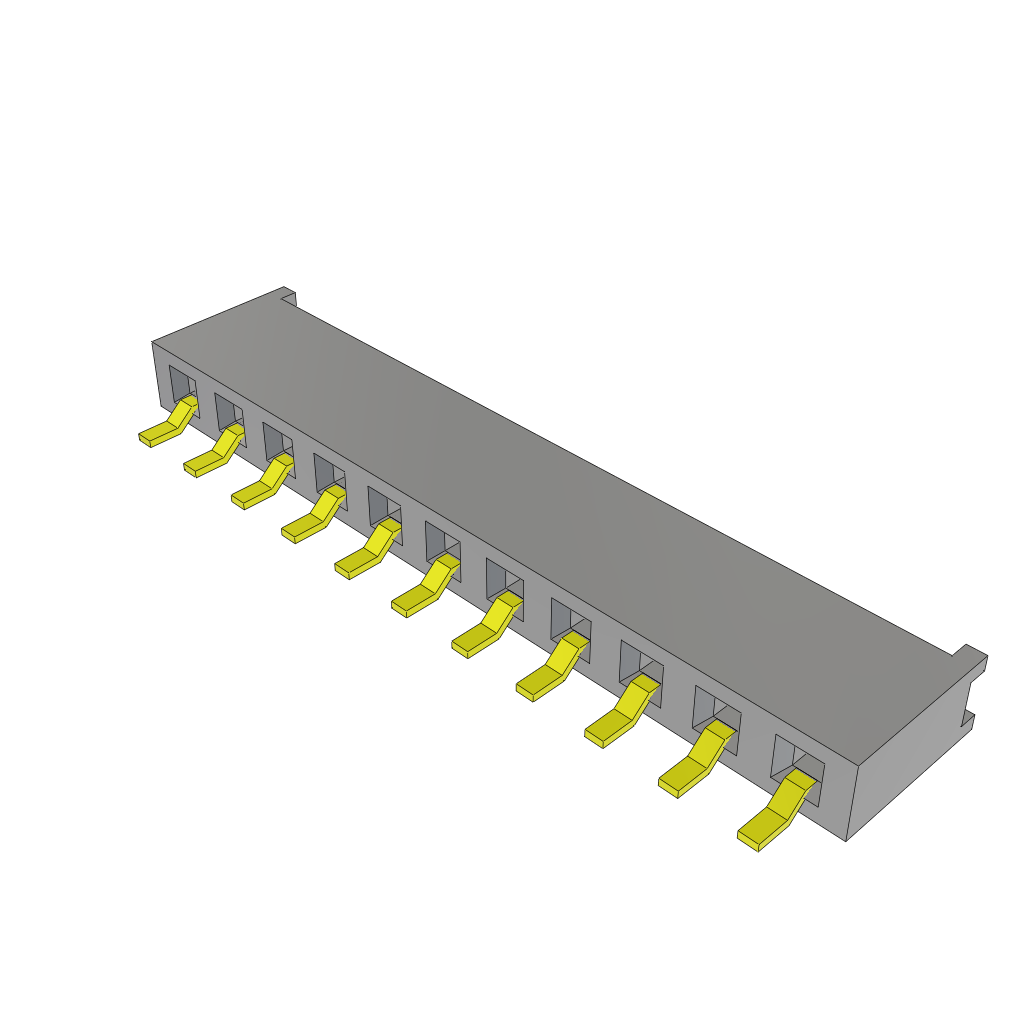

MMS-111-02-L-SH

11 Pos 2mm Gold Socket Header, Surface Mount, Solder RA

11-position, 1-row shrouded socket strip with 2mm pitch, designed for surface mount applications. Features gold-plated bronze square female socket contacts with a 2.16mm height and 4.5mm width. Operates within a -55°C to 125°C temperature range, constructed with a black polymer housing and insulation. This RoHS compliant component is supplied in a rail/tube package.

MountingSurface Mount

Quick Jump:

Technical Specifications

Samtec MMS-111-02-L-SH technical specifications.

General

Contact Finish - Mating	GOLD
Contact Material	Bronze
Contact Plating	Gold
Contact Shape	Square
Contact Type	Female Socket
Gender	Receptacle
Height	2.16mm
Housing Color	Black
Insulation Color	Black
Insulation Material	Polymer
Lead Free	Lead Free
Length	22mm
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Mount	Surface Mount
Number of Contacts	11
Number of Positions	11
Number of Rows	1
Packaging	Rail/Tube
Pitch	2mm
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	MMS
Termination	Solder
Width	4.5mm
