12-position, single-row female socket connector with a 2mm pitch. Features tin-plated bronze contacts with a matte tin finish, designed for through-hole mounting and solder termination. This straight, vertical PCB connector has a black polymer insulation and operates within a temperature range of -55°C to 105°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec MMS-112-01-T-SV technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Material | Bronze |
| Contact Plating | Tin, Matte |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Depth | 2mm |
| Gender | Female |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Length | 24.56mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2mm |
| RoHS Compliant | Yes |
| Series | MMS |
| Termination | Solder |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Samtec MMS-112-01-T-SV Datasheet
Download the complete datasheet for Samtec MMS-112-01-T-SV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

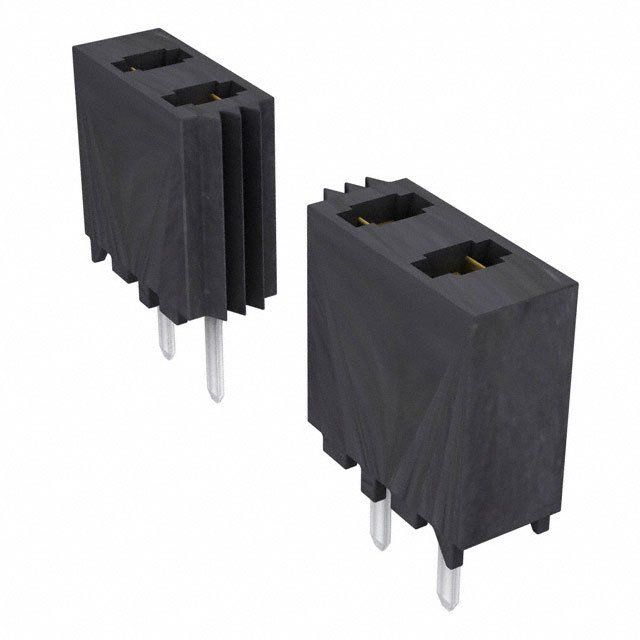

Product Images
