Technical Specifications
Samtec MMS-120-02-L-SH technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Gender | Receptacle |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Orientation | Horizontal |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MMS |
| Termination | Solder |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Samtec MMS-120-02-L-SH Datasheet
Download the complete datasheet for Samtec MMS-120-02-L-SH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

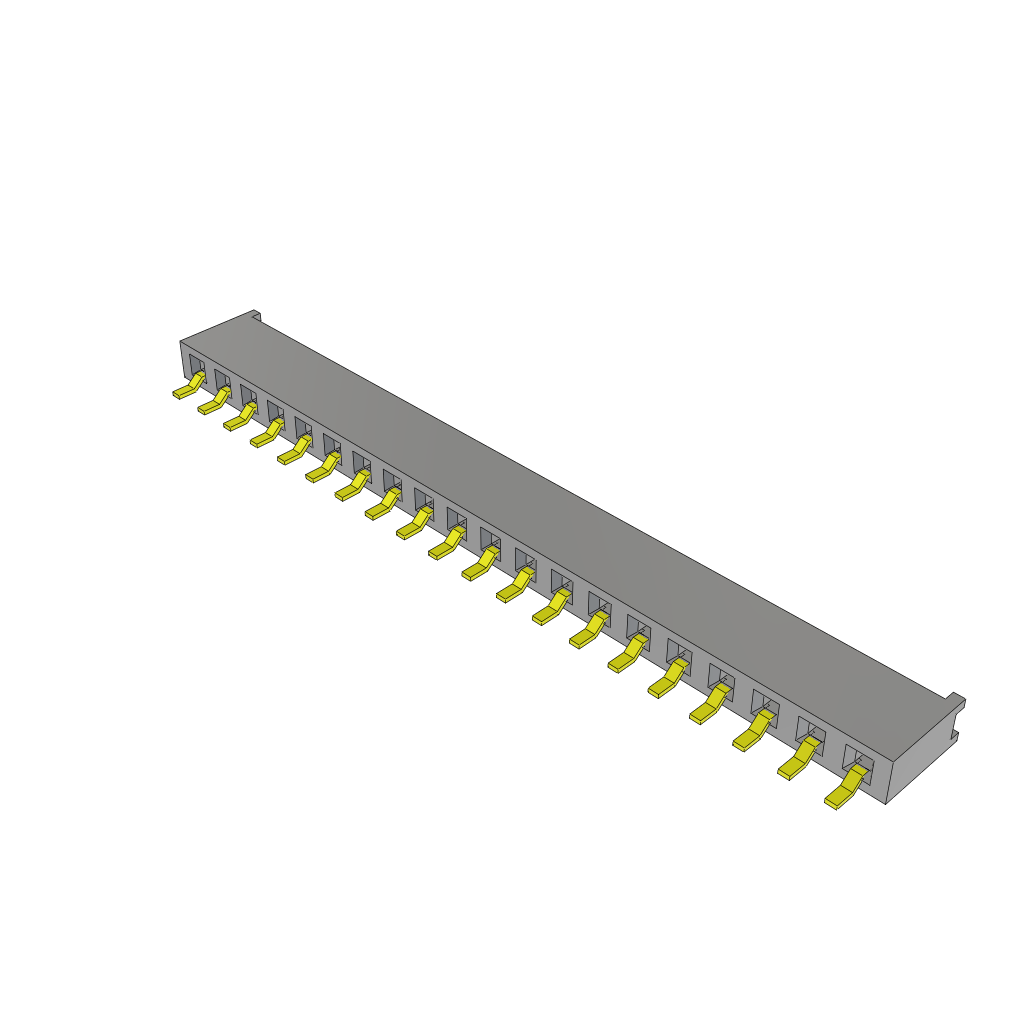

Product Images
