Samtec
MPTC-02-16-02-01-03-L-RA-SD

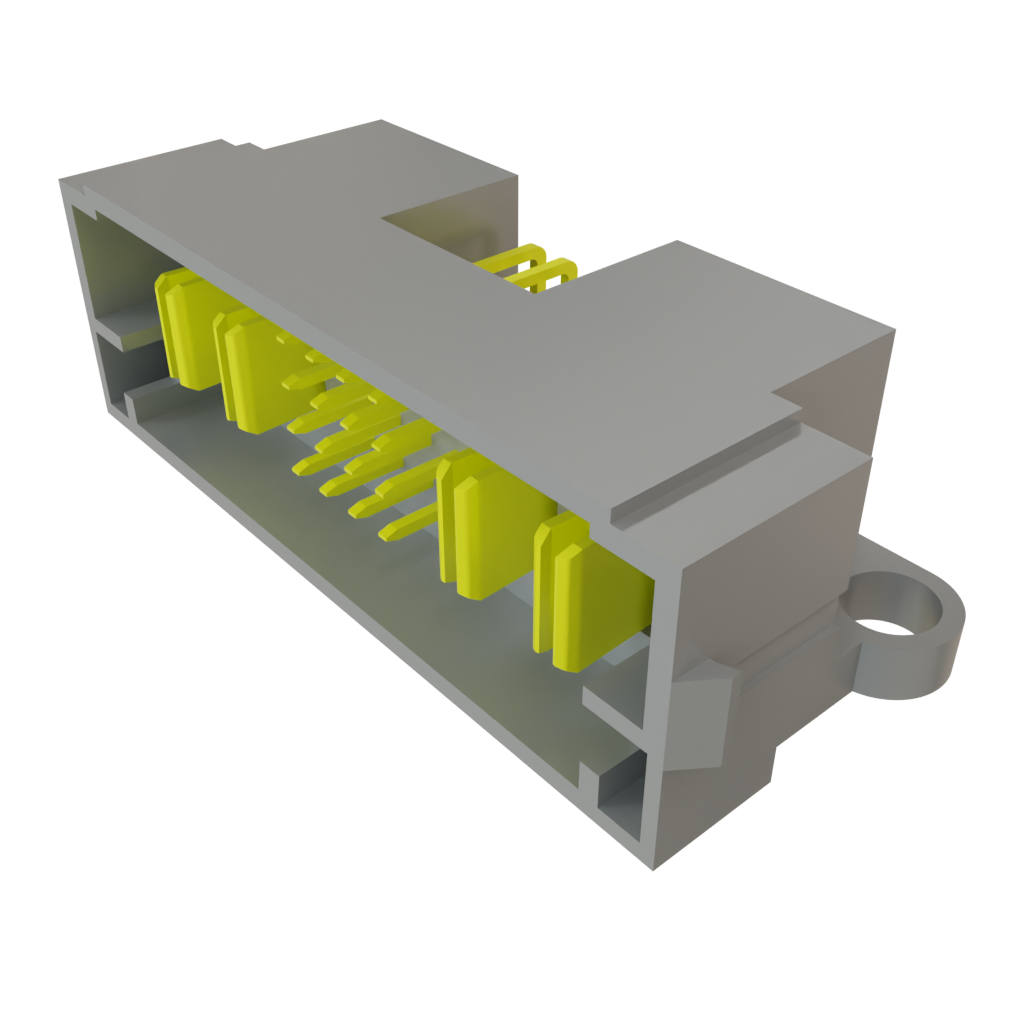

20-Contact Right-Angle Power Connector with Liquid Crystal Polymer Insulator
This Samtec MPTC-02-16-02-01-03-L-RA-SD connector features 20 male contacts with a tin over nickel finish and a 10u plating thickness. It has a commercial reliability rating and is suitable for operating temperatures between -55 and 125 degrees Celsius. The connector is made with a liquid crystal polymer (LCP) insulator and has a black color. It is a single unit with a right-angle mounting style and a solder termination type.
MountingRIGHT ANGLE
Quick Jump:
Technical Specifications
Samtec MPTC-02-16-02-01-03-L-RA-SD technical specifications.
General
| Max Operating Temperature | 125 |
| Min Operating Temperature | -55 |
| Termination Type | SOLDER |
| Insulator Material | LIQUID CRYSTAL POLYMER (LCP) |
| Total Number of Contacts | 20 |
| Contact Gender | MALE |
| Reliability | COMMERCIAL |
| Manufacturer Series | MPTC |
| Mounting Style | RIGHT ANGLE |
| Insulator Color | BLACK |
| Plating Thickness | 10u |
| Number Of Connectors | ONE |
| Contact Finish Termination | TIN OVER NICKEL |
Compliance
| REACH | Compliant |
| Military Spec | True |
Datasheet
Samtec MPTC-02-16-02-01-03-L-RA-SD Datasheet
Download the complete datasheet for Samtec MPTC-02-16-02-01-03-L-RA-SD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
