Samtec
MTMM-116-10-T-S-155

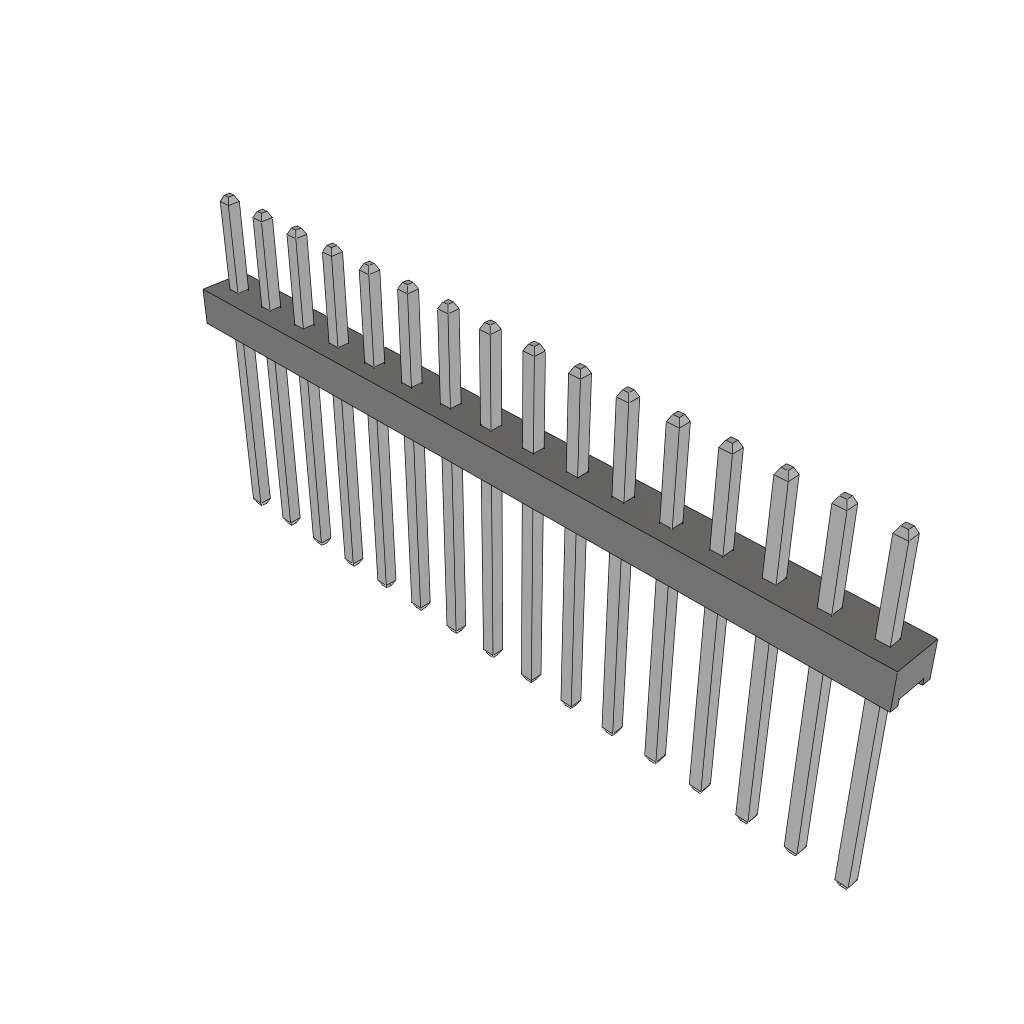

Unshrouded 16-Contact HDR Header, 2mm Pitch, Through Hole Mount, -55 to 105°C
The MTMM-116-10-T-S-155 is a 16-contact unshrouded header from Samtec, designed for through hole mounting. It features a 2mm terminal pitch and a straight body orientation. The header operates within a temperature range of -55°C to 105°C and has a maximum current rating of 3A per contact. The component measures 5.43mm in height and 3.93mm in mating length.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec MTMM-116-10-T-S-155 technical specifications.
General
| Type | Unshrouded Header |
| Gender | HDR |
| Number of Contacts | 16 |
| Terminal Pitch | 2mm |
| Number of Rows | 1 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 105°C |
| Body Orientation | Straight |
| Mounting | Through Hole |
| Max Current Rating | 3/ContactA |
| Height | 5.43mm |
| Mating Length | 3.93mm |
Compliance
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
