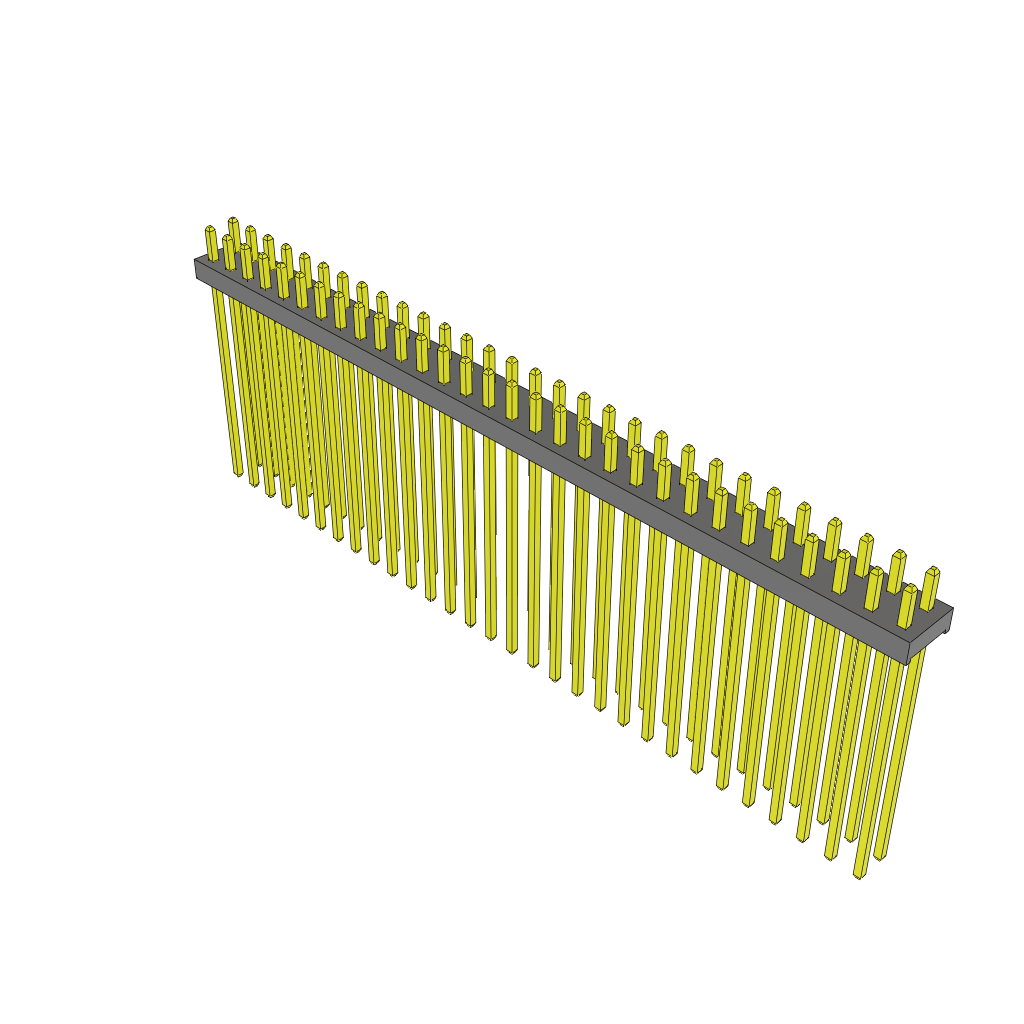

This unshrouded header features 60 contacts, a 2mm terminal pitch, and a 2-row configuration. It is designed for through-hole mounting and has a maximum current rating of 3 amps per contact. The operating temperature range is -55 to 125 degrees Celsius. The header has a height of 4.04mm and a mating length of 2.54mm.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec MTMM-130-15-G-D-100 technical specifications.
General
| Type | Unshrouded Header |
| Gender | HDR |
| Number of Contacts | 60 |
| Terminal Pitch | 2mm |
| Number of Rows | 2 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 125°C |
| Body Orientation | Straight |
| Mounting | Through Hole |
| Max Current Rating | 3/ContactA |
| Height | 4.04mm |
| Mating Length | 2.54mm |
Compliance
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
Datasheet
Samtec MTMM-130-15-G-D-100 Datasheet
Download the complete datasheet for Samtec MTMM-130-15-G-D-100 to view detailed technical specifications.
