Technical Specifications
Samtec MTSW-103-21-G-S-1130-RA technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | Glass |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Series | Flex Stack, MTSW |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec MTSW-103-21-G-S-1130-RA Datasheet
Download the complete datasheet for Samtec MTSW-103-21-G-S-1130-RA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

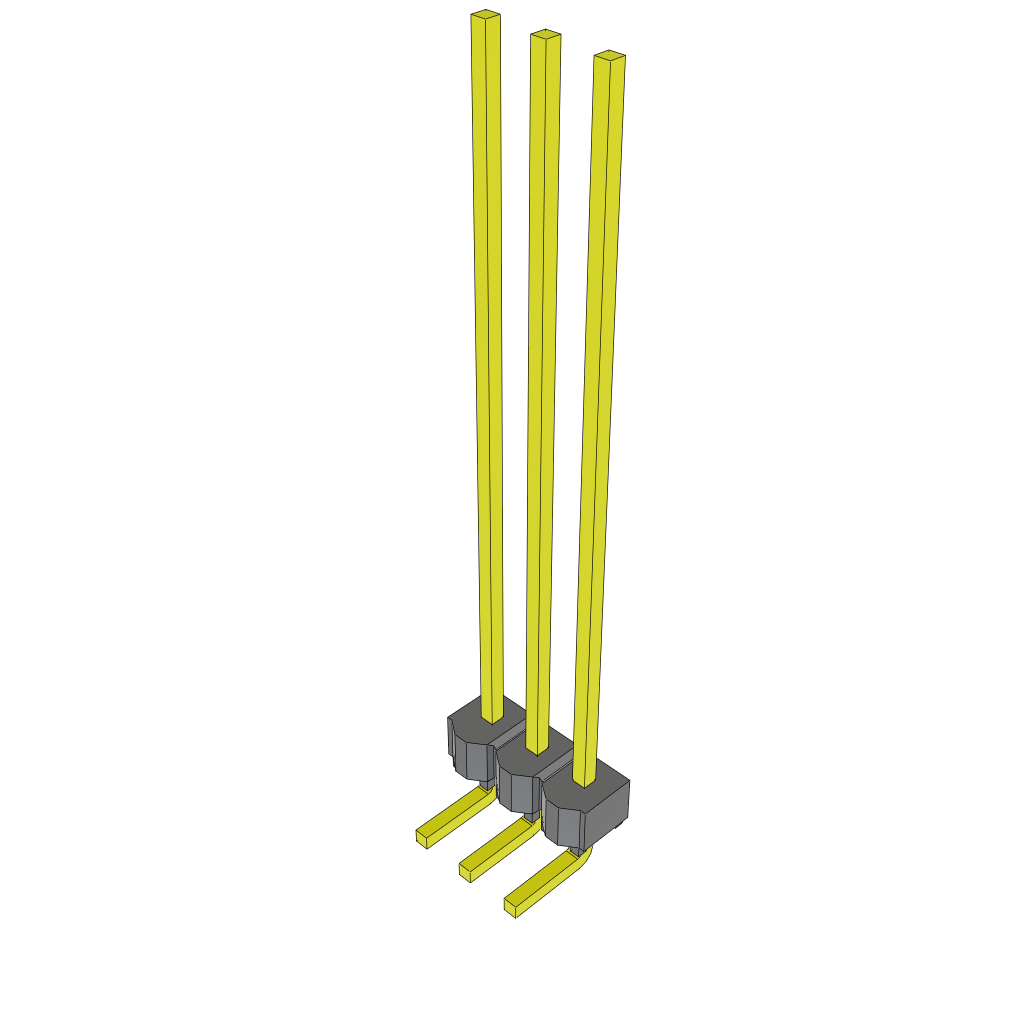

Product Images
