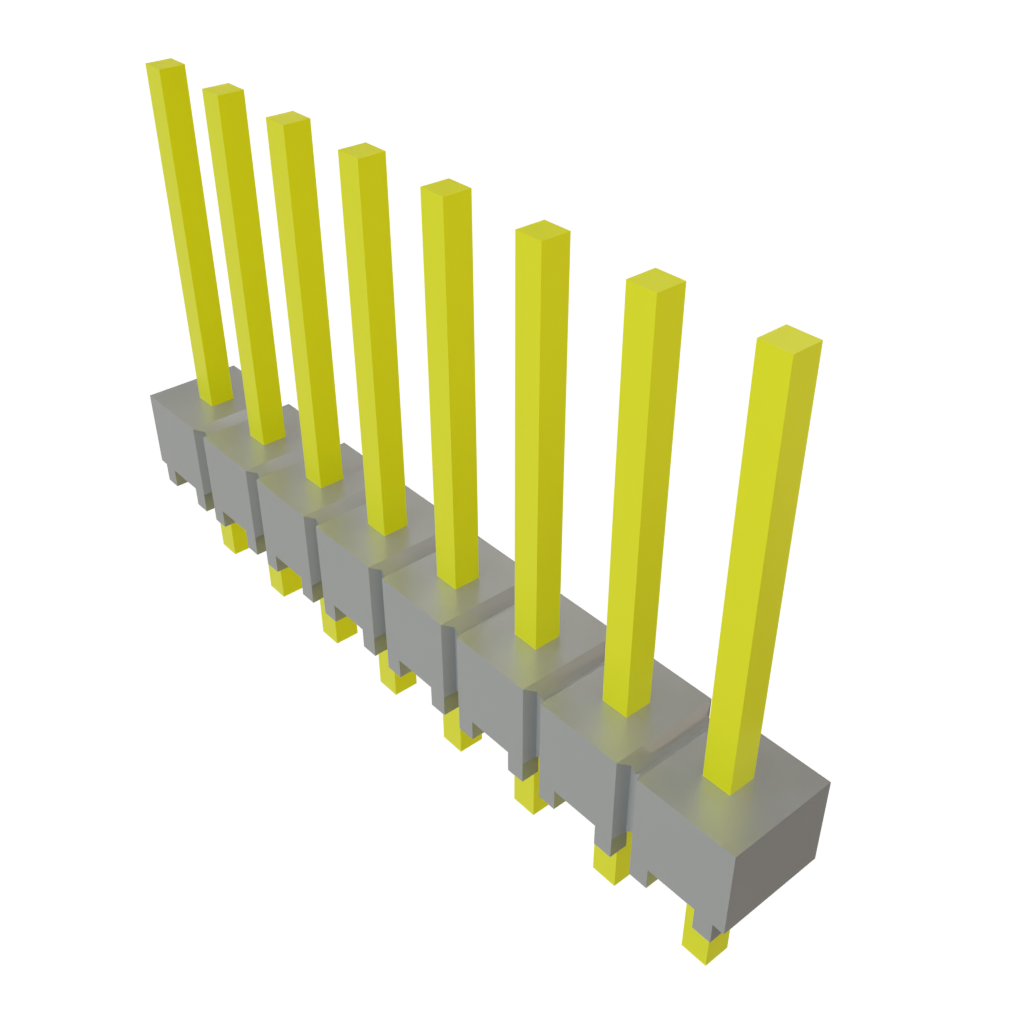

The MTSW-108-08-T-S-340 is an unshrouded header with 8 HDR contacts, a 2.54mm terminal pitch, and a through hole mount. It has a maximum operating temperature range of -55 to 105 degrees Celsius. The header is designed for solder termination and has a maximum current rating of 3 amps per contact. It measures 11.17mm in height and 8.63mm in mating length.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec MTSW-108-08-T-S-340 technical specifications.
General
| Type | Unshrouded Header |
| Gender | HDR |
| Number of Contacts | 8 |
| Terminal Pitch | 2.54mm |
| Number of Rows | 1 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 105°C |
| Body Orientation | Straight |
| Mounting | Through Hole |
| Max Current Rating | 3/ContactA |
| Height | 11.17mm |
| Mating Length | 8.63mm |
Compliance
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
