MTSW-109-11-G-S-155-RE

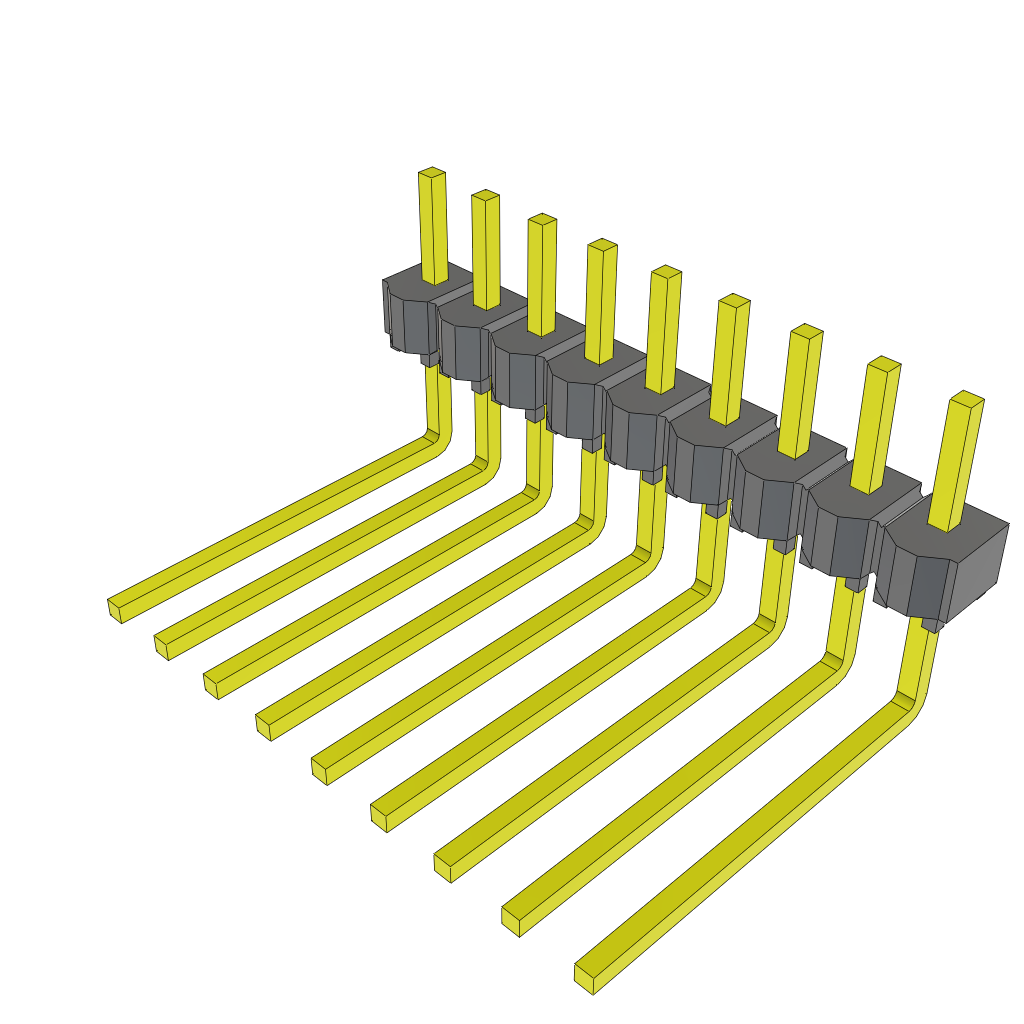

9-Contact Unshrouded HDR Header, 2.54mm Pitch, Through Hole Mount, -55°C to 125°C
The MTSW-109-11-G-S-155-RE is a 9-contact unshrouded header from Samtec, designed for board-to-board connections. It features a 2.54mm terminal pitch and a right-angle body orientation. This header is suitable for through-hole mounting and can operate within a temperature range of -55°C to 125°C. The maximum current rating per contact is 3A.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec MTSW-109-11-G-S-155-RE technical specifications.
General
| Type | Unshrouded Header |
| Gender | HDR |
| Number of Contacts | 9 |
| Terminal Pitch | 2.54mm |
| Number of Rows | 1 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 125°C |
| Body Orientation | Right Angle |
| Mounting | Through Hole |
| Max Current Rating | 3/ContactA |
| Height | 3.02mm |
| Mating Length | 3.93mm |
Compliance
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
Datasheet
Samtec MTSW-109-11-G-S-155-RE Datasheet
Download the complete datasheet for Samtec MTSW-109-11-G-S-155-RE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
