MTSW-112-08-S-D-340

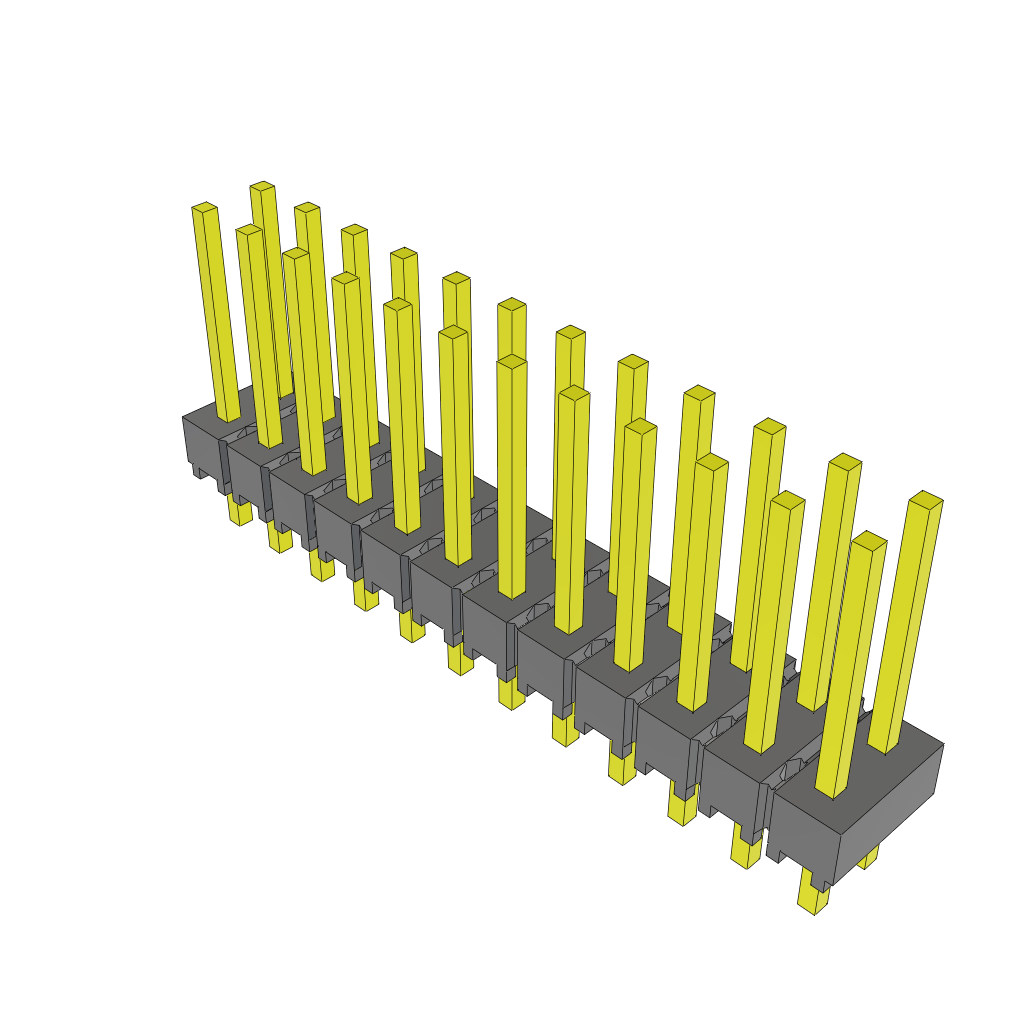

24-Contact Unshrouded Header, HDR, 2.54mm Pitch, 2 Rows, Through Hole Mount
The MTSW-112-08-S-D-340 is a 24-contact unshrouded header from Samtec, designed for board-to-board connections. It features a 2.54mm terminal pitch and two rows of contacts. The header is terminated with solder and is rated for a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. It is suitable for through-hole mounting and has a maximum current rating of 3A per contact.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec MTSW-112-08-S-D-340 technical specifications.
General
| Type | Unshrouded Header |
| Gender | HDR |
| Number of Contacts | 24 |
| Terminal Pitch | 2.54mm |
| Number of Rows | 2 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 125°C |
| Body Orientation | Straight |
| Mounting | Through Hole |
| Max Current Rating | 3/ContactA |
| Height | 11.17mm |
| Mating Length | 8.63mm |
Compliance
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
Datasheet
Samtec MTSW-112-08-S-D-340 Datasheet
Download the complete datasheet for Samtec MTSW-112-08-S-D-340 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
