Samtec
MTSW-114-12-T-S-784

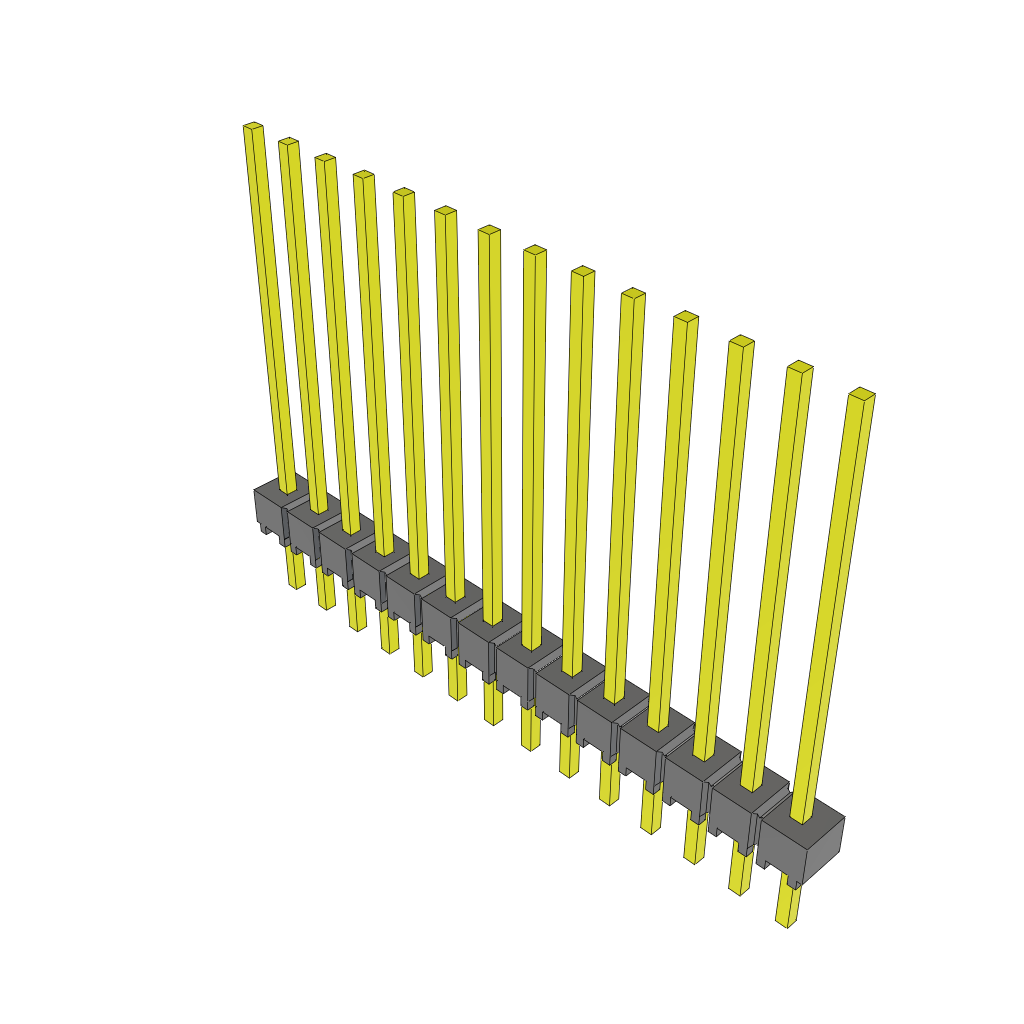

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec MTSW-114-12-T-S-784 technical specifications.
General
| Type | Unshrouded Header |
| Gender | HDR |
| Number of Contacts | 14 |
| Terminal Pitch | 2.54mm |
| Number of Rows | 1 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 105°C |
| Body Orientation | Straight |
| Mounting | Through Hole |
| Max Current Rating | 3/ContactA |
| Height | 22.45mm |
| Mating Length | 19.91mm |
Compliance
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
Datasheet
Samtec MTSW-114-12-T-S-784 Datasheet
Download the complete datasheet for Samtec MTSW-114-12-T-S-784 to view detailed technical specifications.
No datasheet is available for this part.
