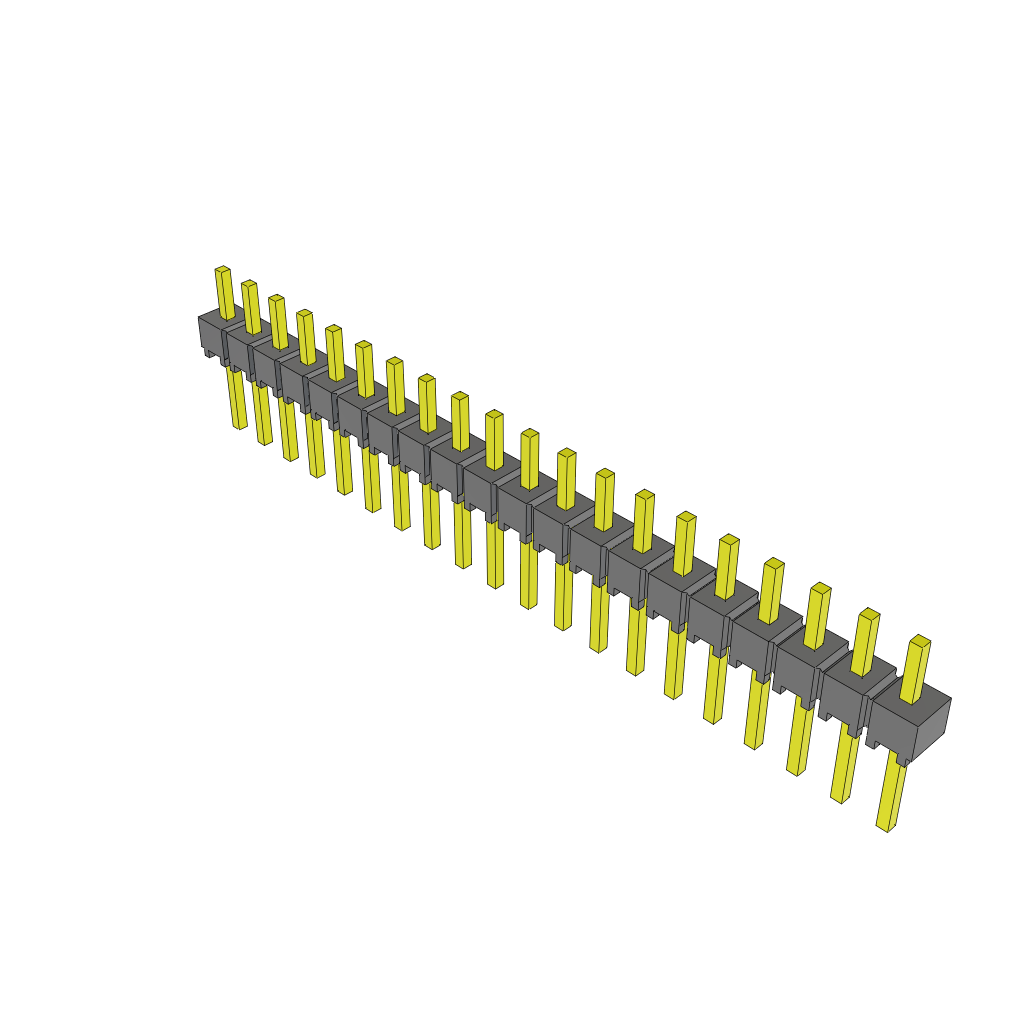

The MTSW-120-07-G-S-125 is a 20-contact unshrouded header from Samtec, designed for board-to-board connections. It features a 2.54mm terminal pitch and a straight body orientation. The header is rated for a maximum current of 3A per contact and has a temperature range of -55°C to 125°C. It is available for through-hole mounting and is suitable for applications requiring high-reliability connections.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec MTSW-120-07-G-S-125 technical specifications.
General
| Type | Unshrouded Header |
| Gender | HDR |
| Number of Contacts | 20 |
| Terminal Pitch | 2.54mm |
| Number of Rows | 1 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 125°C |
| Body Orientation | Straight |
| Mounting | Through Hole |
| Max Current Rating | 3/ContactA |
| Height | 5.71mm |
| Mating Length | 3.17mm |
Compliance
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
Datasheet
Samtec MTSW-120-07-G-S-125 Datasheet
Download the complete datasheet for Samtec MTSW-120-07-G-S-125 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
