36-position, 2-row standard density card edge connector with 1mm pitch. Features gold-plated bronze contacts and a black nylon housing. Rated for 2.5A current and operates from -55°C to 125°C. Straight, through-hole mounted with solder termination, supplied in a tube.
Current Rating2.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec PCIE-036-02-F-D-TH technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Plating
Gold
Current Rating
2.5A
Depth
11mm
Gender
Female
Housing Color
Black
Insulation Material
Nylon
Length
25mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
36
Number of Positions
36
Number of Rows
2
Orientation
Straight
Packaging
Rail/Tube
Pitch
1mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PCI Express® (PCIe)
Termination
Solder
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Samtec PCIE-036-02-F-D-TH Datasheet
Download the complete datasheet for Samtec PCIE-036-02-F-D-TH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

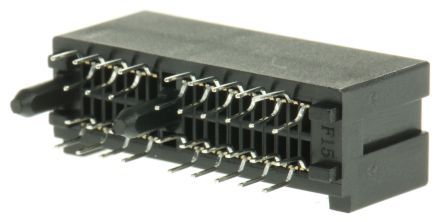

Product Images
