SAMTEC

PCIE-064-02-F-D-TH

Datasheet

64 Pos 2 Row PCIe Card Edge Connector, Female, 1mm Pitch, Solder TH

Samtec

PCIE-064-02-F-D-TH

Name: PCIE-064-02-F-D-TH Samtec
Brand: Samtec
SKU: PCIE-064-02-F-D-TH

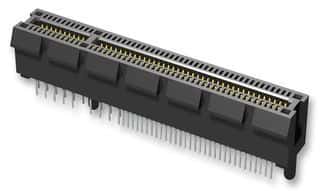

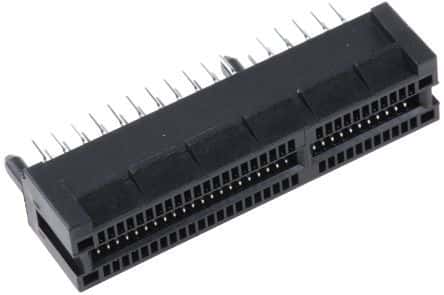

64 Pos 2 Row PCIe Card Edge Connector, Female, 1mm Pitch, Solder TH

64-contact, 2-row female card edge connector with a 1mm pitch. Features straight orientation, through-hole mounting, and solder termination. Constructed with a black polymer insulator and gold-plated bronze contacts, it offers a 2.5A current rating and operates from -55°C to 125°C. This RoHS compliant socket is designed for board-to-board applications.

Current Rating2.5A

MountingThrough Hole

Quick Jump:

Pricing & Availability

Distributor	Package Type	Min Qty	1+	50+	100+	500+	Stock	Action
Samtec	Tube	1	2.285	1.864	1.582	1.406	33,120 In Stock	View

Technical Specifications

Samtec PCIE-064-02-F-D-TH technical specifications.

General

Color	Black
Contact Material	Bronze
Contact Plating	Gold
Current Rating	2.5A
Depth	11mm
Gender	Female
Housing Color	Black
Insulation Material	Polymer
Length	39mm
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Mount	Through Hole
Number of Contacts	64
Number of Positions	64
Number of Rows	2
Orientation	Straight
Packaging	Rail/Tube
Pitch	1mm
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	PCI Express® (PCIe)
Termination	Solder
Width	7.5mm
