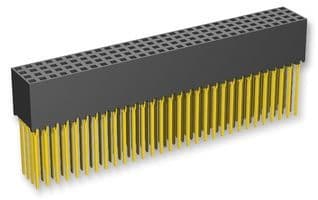

120-position, 4-row shrouded socket strip with 2mm pitch. Features straight, top-entry orientation and press-fit termination. Contacts are bronze with gold plating, offering a square, forked contact shape. Operating temperature range is -55°C to 125°C with a maximum current rating of 2A. Black polymer insulation and housing.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec PTHF-130-02-G-Q-368 technical specifications.
General
Color
Black
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Forked
Depth
8mm
Gender
Female
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Length
60.3mm
Max Current Rating
2A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
120
Number of Positions
120
Number of Rows
4
Orientation
Straight
Packaging
Rail/Tube
Pitch
2mm
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.079inch
Series
PTHF
Termination
Press-Fit
Compliance
RoHS
Compliant
Datasheet
Samtec PTHF-130-02-G-Q-368 Datasheet
Download the complete datasheet for Samtec PTHF-130-02-G-Q-368 to view detailed technical specifications.
