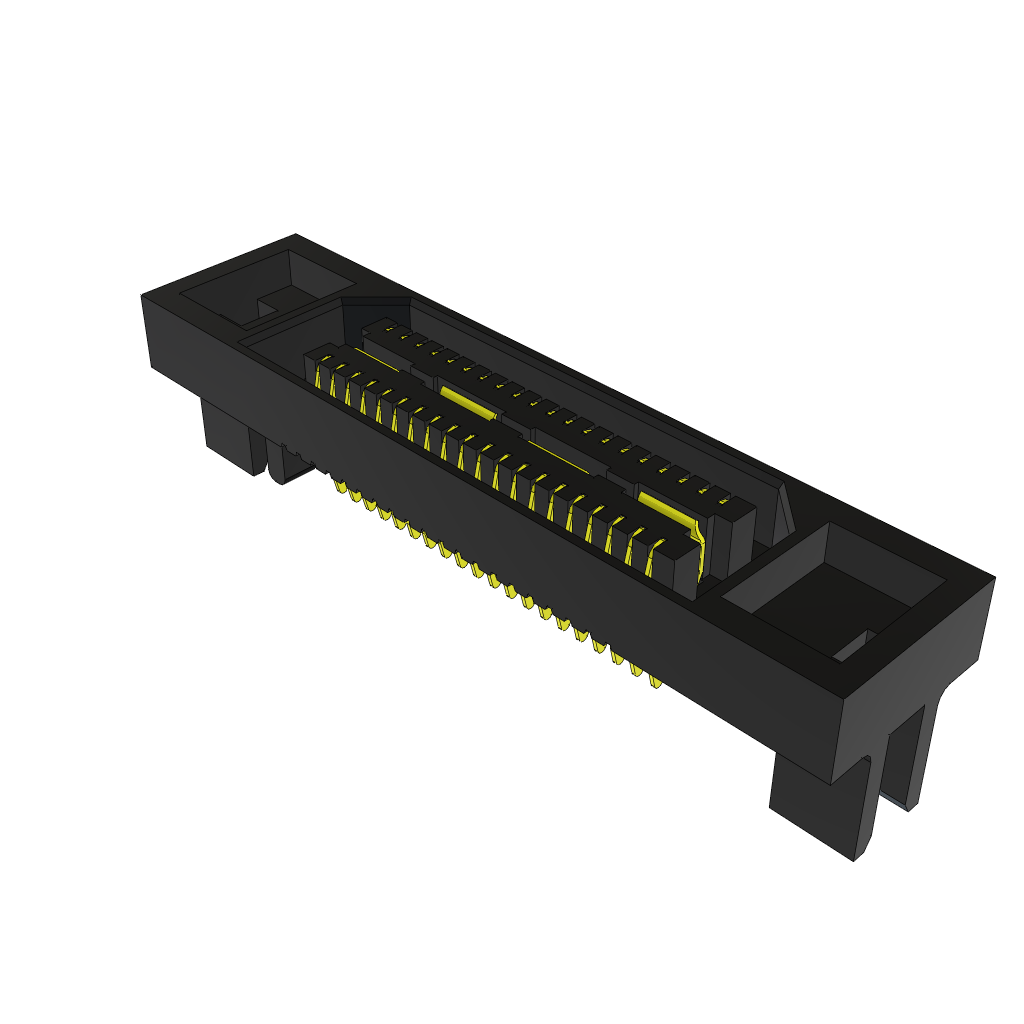

Samtec QSE-020-01-F-D-EM2 technical specifications.
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 7.95mm |
| Gender | Female |
| Length | 31.18mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Straddle Mount, Edge, Board |
| Number of Contacts | 40 |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Tray |
| Pitch | 0.8mm |
| RoHS Compliant | Yes |
| Series | Q Strip® QSE |
| Termination | Solder |
| RoHS | Compliant |
