Samtec
QSS-050-02-L-D-RA-WT-LS1
100-Position 2-Row Female Surface Mount Header, Gold Plated, Solder Termination
This 100-position 2-row female surface mount header features gold plating and solder termination. It is RoHS compliant and available in a tray packaging. The header is part of the Q Strip QSS series from Samtec and is suitable for use in a variety of applications.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec QSS-050-02-L-D-RA-WT-LS1 technical specifications.
General
| Contact Plating | Gold |
| Gender | Female |
| Mount | Surface Mount |
| Number of Contacts | 100 |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | Q Strip® QSS |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec QSS-050-02-L-D-RA-WT-LS1 Datasheet
Download the complete datasheet for Samtec QSS-050-02-L-D-RA-WT-LS1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

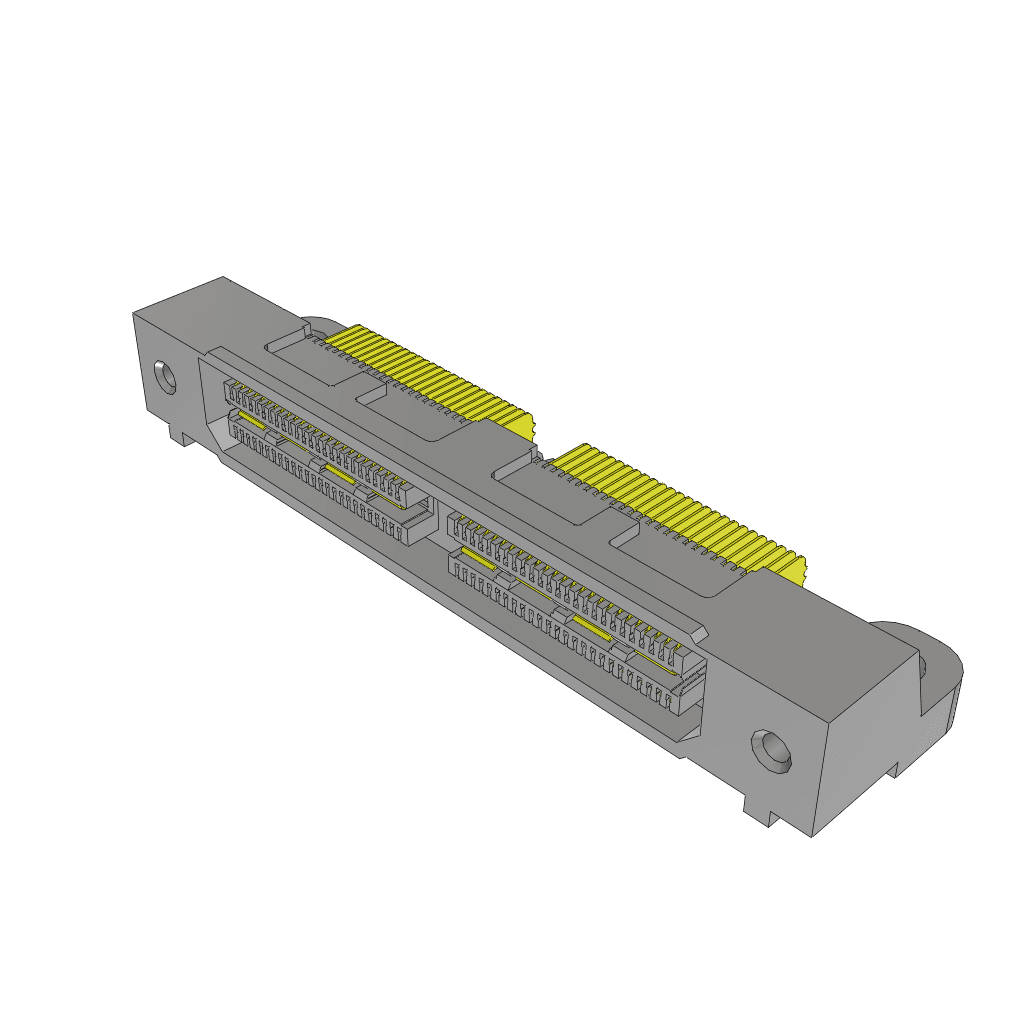

Product Images
