SAMTEC

QTH-030-02-L-D-A

Datasheet

60 Pos 0.5mm Pitch HDR, 2 Rows, 1A, 125V, SMD

Samtec

QTH-030-02-L-D-A

Name: QTH-030-02-L-D-A Samtec
Brand: Samtec
SKU: QTH-030-02-L-D-A
Price: 6.3188 USD
Availability: InStock

60 Pos 0.5mm Pitch HDR, 2 Rows, 1A, 125V, SMD

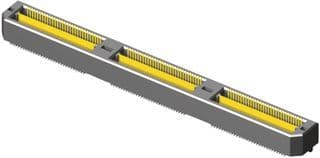

High-speed terminal strip header with 60 positions and 2 rows, featuring a 0.5mm pitch and straight, surface mount orientation. Contacts are bronze with gold plating, supporting a 1A current rating and 125V AC voltage rating. This male connector offers a 20mm length, 7.11mm depth, and 3.9mm row spacing, with a black housing and a mated stacking height of 8mm. Operating temperature range is -55°C to 125°C, and it is RoHS compliant.

Voltage Rating125V

Current Rating1A

MountingSurface Mount

Quick Jump:

Pricing & Availability

Distributor	Package Type	Min Qty	4+	5+	14+	50+	Stock	Action
Quest	-	4	6.3188	5.5605	5.055	4.6759	796 In Stock	View
Samtec	Tray	65	-	-	-	-	81 In Stock	View

Technical Specifications

Samtec QTH-030-02-L-D-A technical specifications.

General

Contact Material	Bronze
Contact Plating	Gold
Current Rating	1A
Depth	7.11mm
Gender	Male
Housing Color	Black
Lead Free	Lead Free
Length	20mm
Mated Stacking Heights	8mm
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Max Voltage Rating (AC)	125V
Mount	Surface Mount
Number of Contacts	60
Number of Positions	60
Number of Rows	2
Orientation	Straight
Packaging	Tray
Pitch	0.5mm
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	3.9mm
Series	Q Strip® QTH
Termination	Solder
Voltage Rating	125V
