High-speed terminal strip connector, male, 120 positions, 2 rows, 0.5mm pitch, and 3.9mm row spacing. Features straight orientation, surface mount termination with solder, and a 1A current rating. Offers a 125V voltage rating and operates across a -55°C to 125°C temperature range. Gold-plated bronze contacts ensure reliable connectivity with a mated stacking height of 8mm.
Voltage Rating125V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec QTH-060-02-L-D-A technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1A |
| Depth | 7.11mm |
| Gender | Male |
| Length | 40mm |
| Mated Stacking Heights | 8mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 125V |
| Mount | Surface Mount |
| Number of Contacts | 120 |
| Number of Positions | 120 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Tray |
| Pitch | 0.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 3.9mm |
| Series | Q Strip® QTH |
| Termination | Solder |
| Voltage Rating | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec QTH-060-02-L-D-A Datasheet
Download the complete datasheet for Samtec QTH-060-02-L-D-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

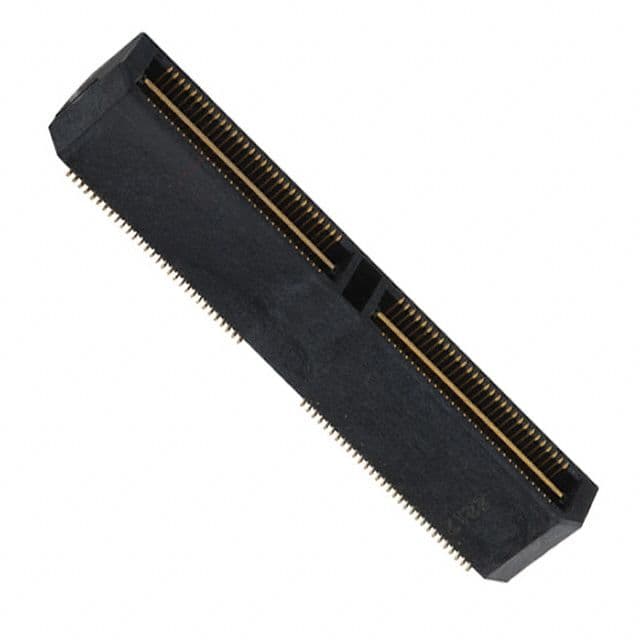

Product Images
