High-speed terminal strip header with 120 positions and 2 rows on a 0.5mm pitch. Features bronze contacts with gold plating for reliable connectivity. Straight orientation with solder termination for surface mount device (SMD) applications. Operates across a wide temperature range of -55°C to 125°C and supports a maximum voltage rating of 125V AC. Mated stacking height is 19mm, with a component depth of 5.97mm and length of 40mm. Packaged in trays and is RoHS compliant.
Quick Jump:
Technical Specifications

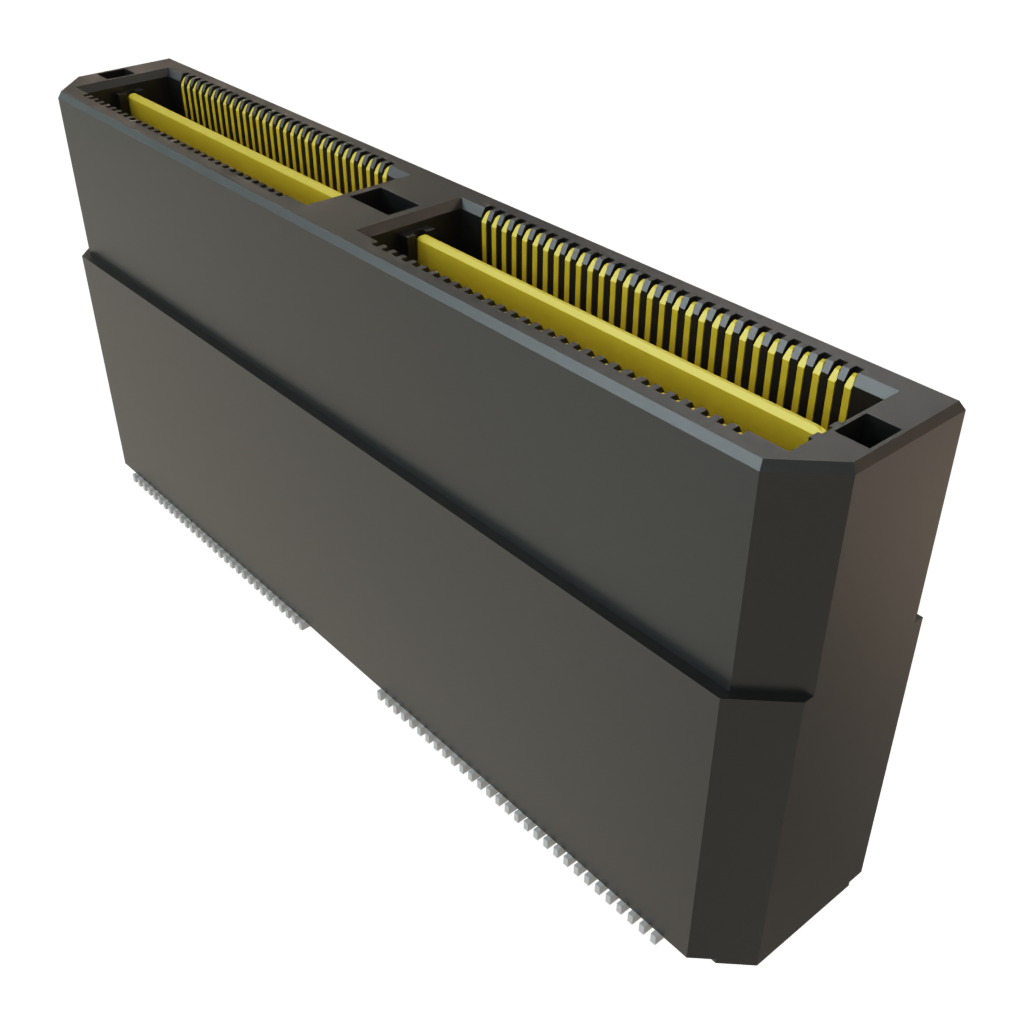

Samtec QTH-060-05-L-D-A technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 5.97mm |
| Gender | Male |
| Length | 40mm |
| Mated Stacking Heights | 19mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 125V |
| Number of Contacts | 120 |
| Number of Positions | 120 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Tray |
| Pitch | 0.5mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Q Strip® QTH |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec QTH-060-05-L-D-A Datasheet
Download the complete datasheet for Samtec QTH-060-05-L-D-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
