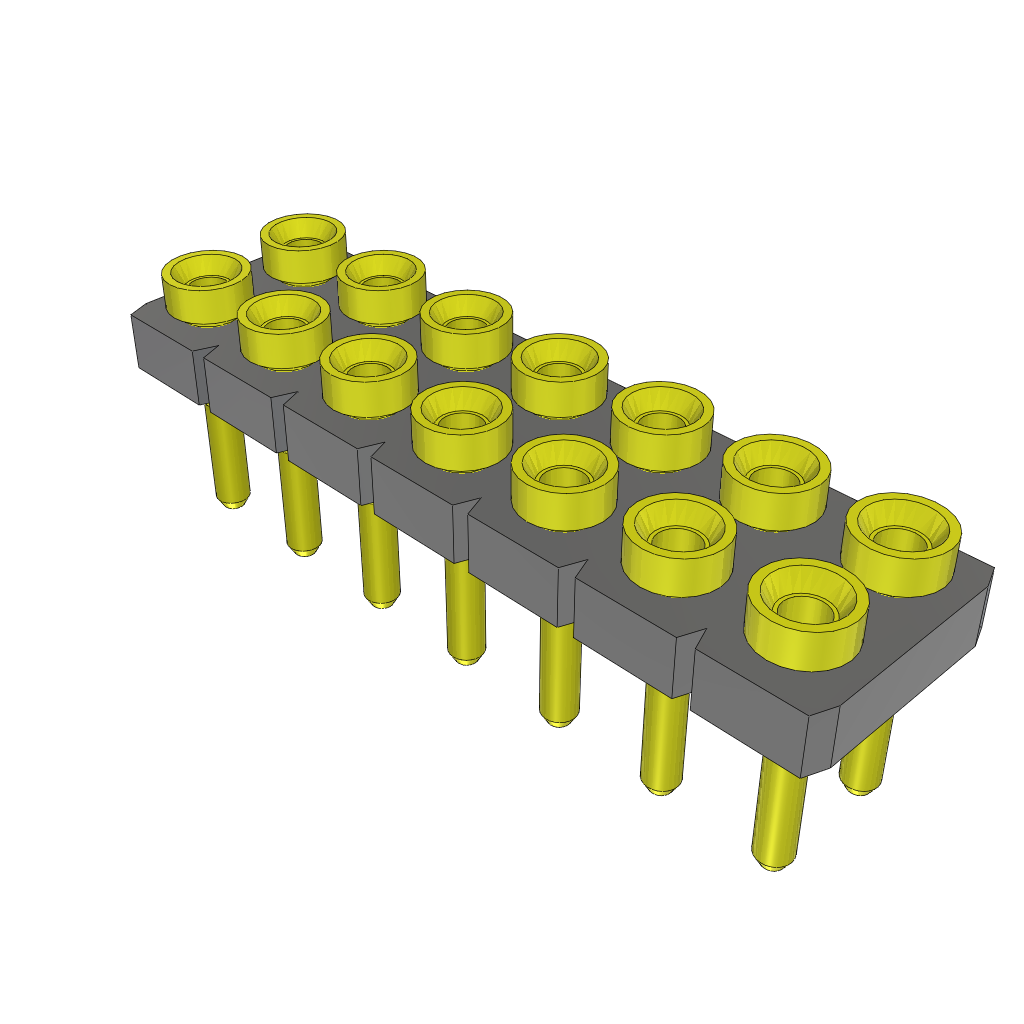

14-position female socket strip with 2.54mm pitch, designed for top entry through-hole mounting. Features gold-plated copper contacts with a circular shape and a 1.27mm height. The black polymer housing and insulation ensure durability, operating from -55°C to 125°C. This lead-free and RoHS compliant component is supplied in tube packaging.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SDL-107-T-10 technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Copper
Contact Plating
Gold
Contact Shape
Circular
Contact Type
Female Socket
Gender
Female
Height
1.27mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
17.8mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
14
Number of Positions
14
Number of Rows
2
Packaging
Rail/Tube
Pitch
2.54mm
RoHS Compliant
Yes
Series
SDL
Termination
Solder
Width
5.08mm
Compliance
RoHS
Compliant
