100-position, 2-row socket strip with 1.27mm pitch and straight, surface-mount orientation. Features copper contacts with gold plating, rated for 5A max current and 350V AC max voltage. Operates across a -55°C to 125°C temperature range. Black housing and RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec SFM-150-02-S-D-A technical specifications.
General
| Color | Black |
| Contact Material | Copper |
| Contact Plating | Gold |
| Contact Type | Female Socket |
| Depth | 3.68mm |
| Gender | Receptacle |
| Housing Color | Black |
| Lead Free | Lead Free |
| Lead Pitch | 1.27mm |
| Length | 66.67mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 350V |
| Mount | Surface Mount |
| Number of Contacts | 100 |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.05inch |
| Series | Tiger Eye™ SFM |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SFM-150-02-S-D-A Datasheet
Download the complete datasheet for Samtec SFM-150-02-S-D-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

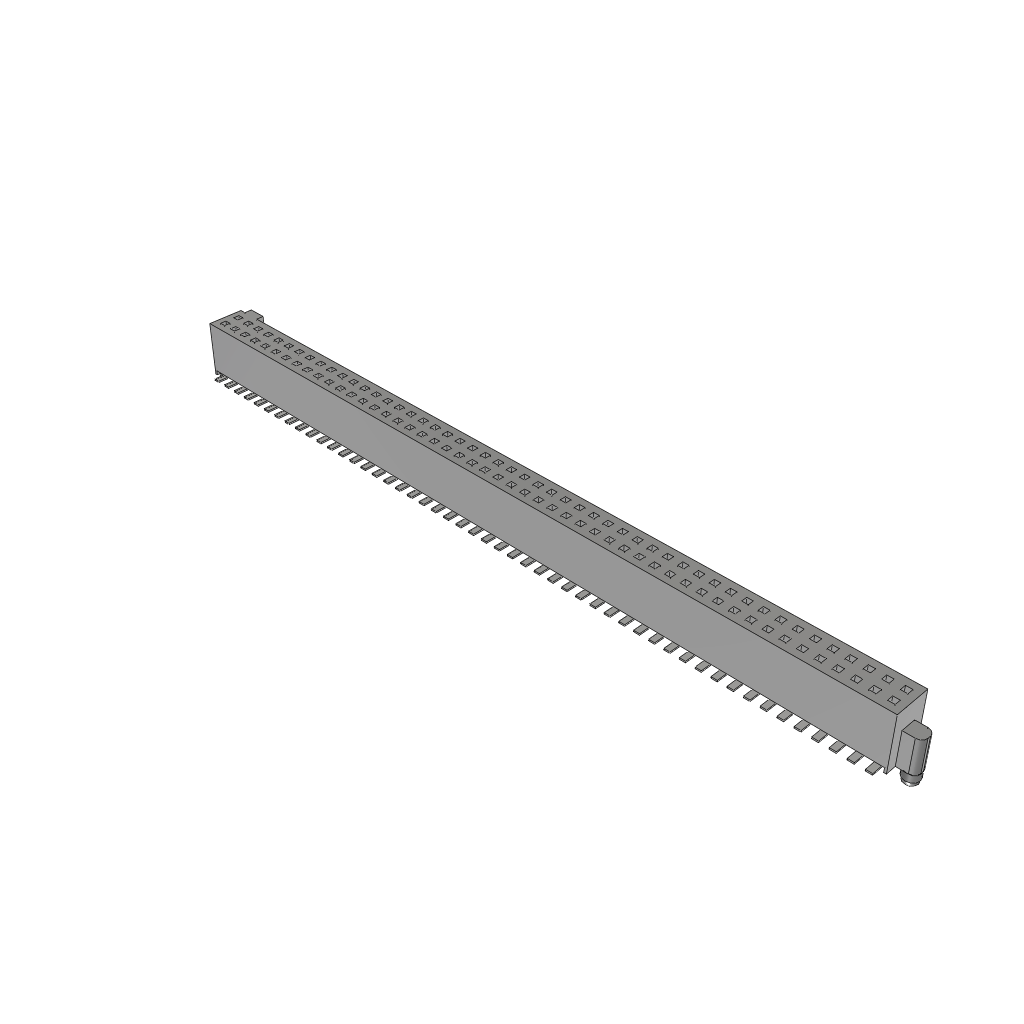

Product Images
