90-position, 2-row straight shrouded socket strip with 1.27mm pitch. Features gold-plated copper contacts for 2A current rating and 350V voltage rating. UL94 V-0 rated black polymer insulation ensures durability. Designed for through-hole mounting with a solder termination. Offers 10,000 mating cycles and operates within a -55°C to 125°C temperature range.
Voltage Rating350V
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SFML-145-01-S-D technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Copper |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating | 2A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Pitch | 1.27mm |
| Mating Cycles | 10000 |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 90 |
| Number of Positions | 90 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 1.27mm |
| Series | Tiger Eye™ SFML |
| Termination | Solder |
| Voltage Rating | 350V |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SFML-145-01-S-D Datasheet
Download the complete datasheet for Samtec SFML-145-01-S-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

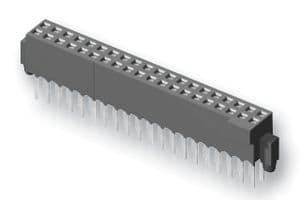

Product Images
