4-position, 1-row straight shrouded receptacle with a 2.54mm pitch. Features copper contacts with gold plating, a black housing, and a solder termination. Rated for 1A maximum current and operates between -55°C and 125°C. Through-hole mounting with a straight orientation.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SL-104-G-12 technical specifications.
General
Color
Black
Contact Material
Copper
Contact Plating
Gold
Depth
2.54mm
Gender
Receptacle
Housing Color
Black
Lead Free
Lead Free
Length
10.16mm
Max Current Rating
1A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
4
Number of Positions
4
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SL
Termination
Solder
Width
2.54mm
Compliance
RoHS
Compliant
Datasheet
Samtec SL-104-G-12 Datasheet
Download the complete datasheet for Samtec SL-104-G-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

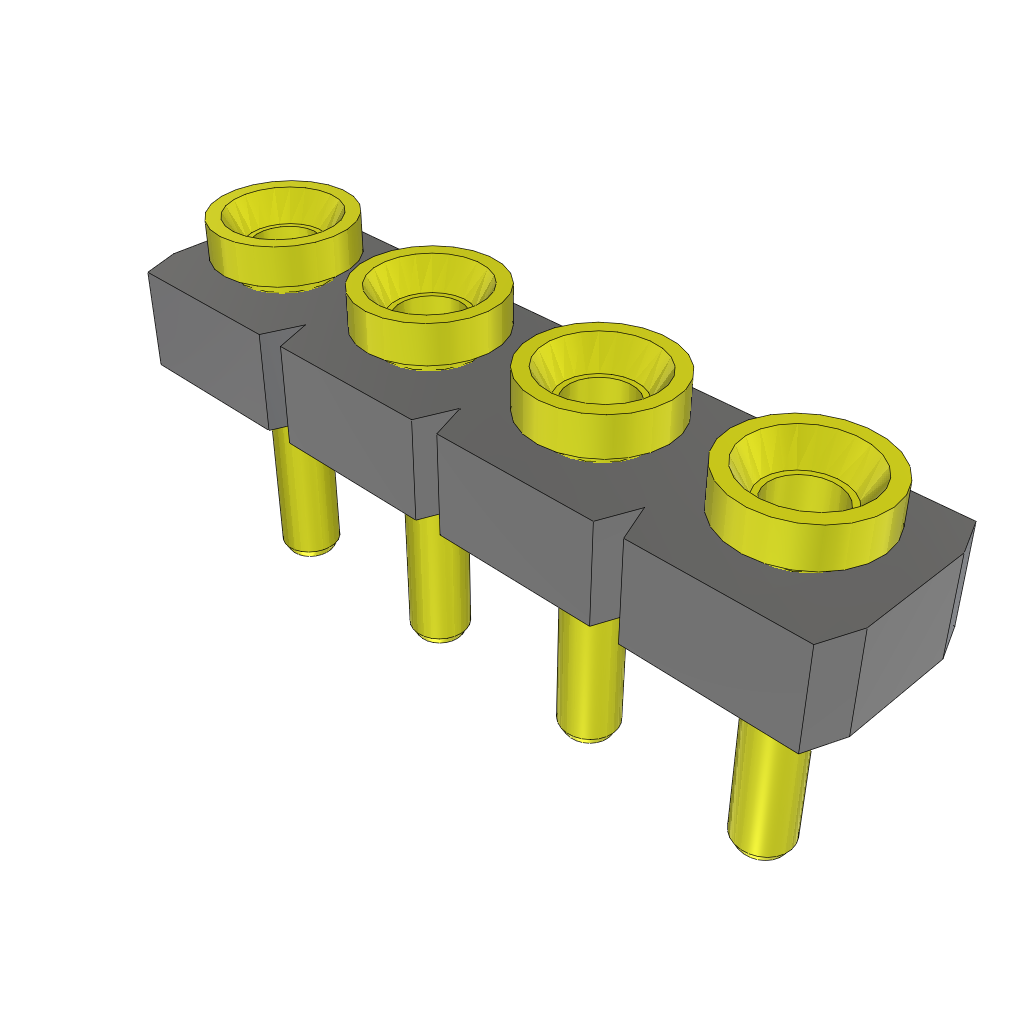

Product Images
