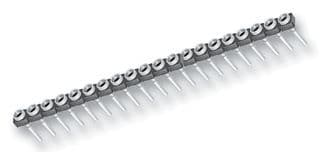

28-position, single-row socket strip with a 2.54mm pitch. Features straight, top-entry, through-hole mounting with solder termination. Circular female socket contacts are made of copper with gold plating for mating. The black polymer housing and insulation support a 1A current rating and operate within a -55°C to 125°C temperature range. RoHS compliant and lead-free.
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SL-128-T-10 technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Copper |
| Contact Plating | Gold |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating | 1A |
| Gender | Receptacle |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 28 |
| Number of Positions | 28 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SL |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SL-128-T-10 Datasheet
Download the complete datasheet for Samtec SL-128-T-10 to view detailed technical specifications.
