28-position, single-row socket strip with 2.54mm pitch for board-to-board applications. Features female socket contacts made of copper with tin plating for reliable mating. Designed for top entry, through-hole mounting with solder termination. Operates within a temperature range of -55°C to 105°C, housed in black polymer insulation. RoHS compliant and lead-free.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SL-128-TT-12 technical specifications.
General
Contact Finish - Mating
TIN
Contact Material
Copper
Contact Plating
Tin
Contact Shape
Circular
Contact Type
Female Socket
Gender
Receptacle
Height
1.27mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
71.1mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
28
Number of Positions
28
Number of Rows
1
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SL
Termination
Solder
Width
2.54mm
Compliance
RoHS
Compliant
Datasheet
Samtec SL-128-TT-12 Datasheet
Download the complete datasheet for Samtec SL-128-TT-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

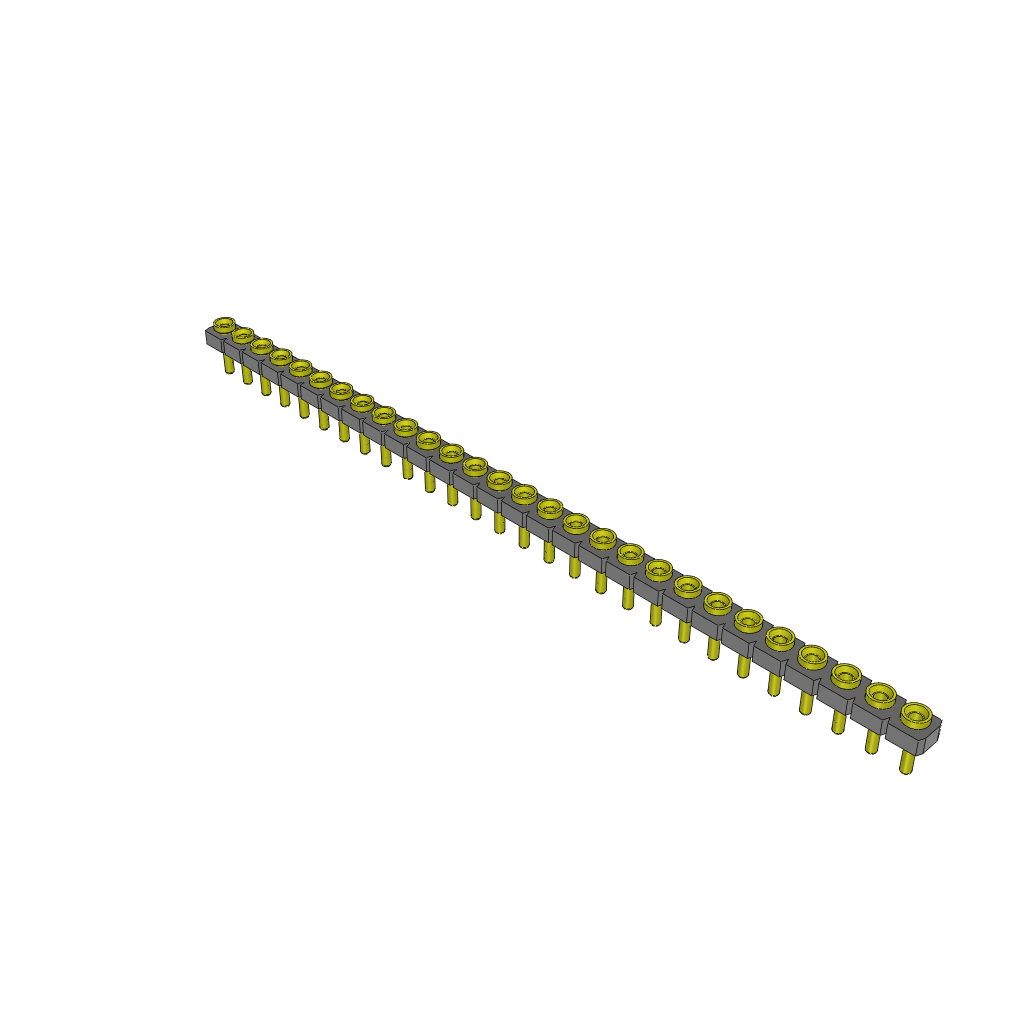

Product Images
