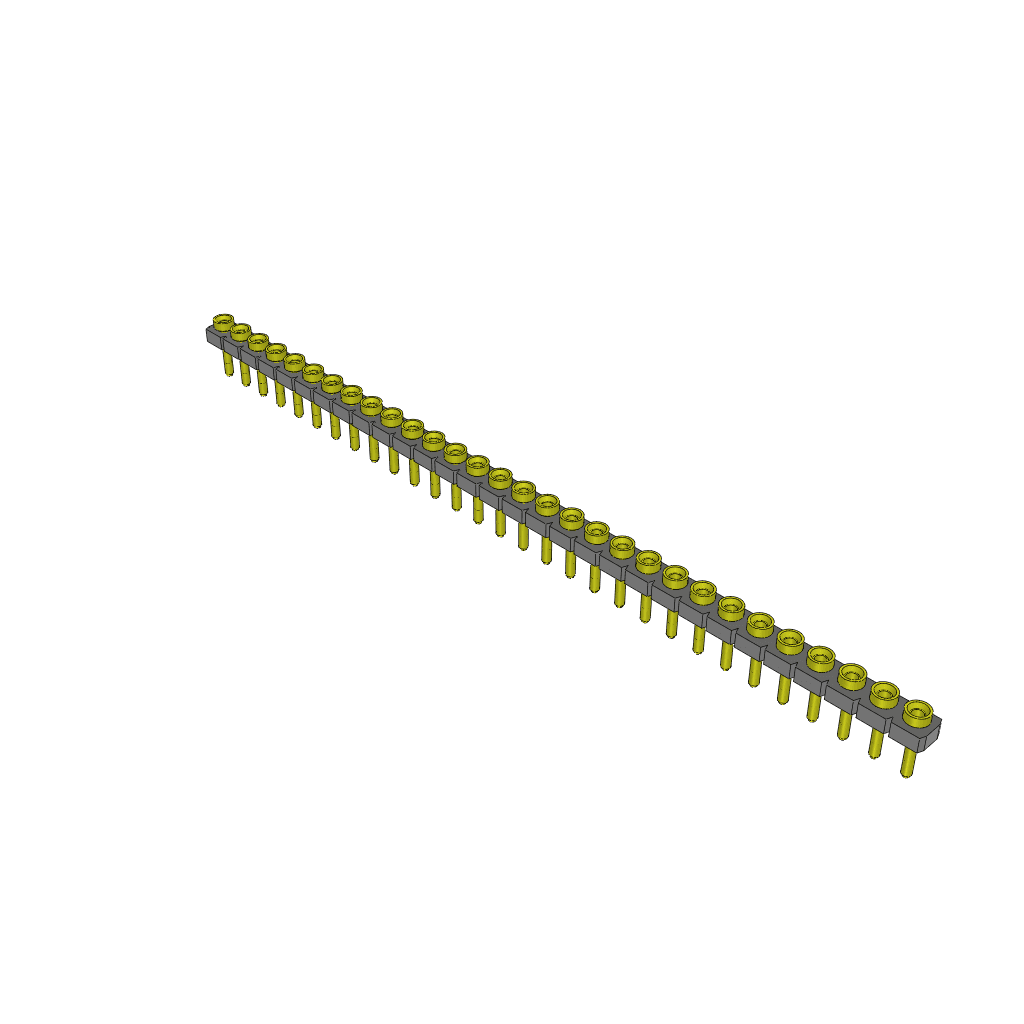

30-position, single-row socket strip connector with 2.54mm pitch. Features gold-plated copper female socket contacts for mating. Through-hole mounting with solder termination. Black polymer housing and insulation. Operating temperature range of -55°C to 125°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SL-130-G-10 technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Copper
Contact Plating
Gold
Contact Shape
Circular
Contact Type
Female Socket
Gender
Receptacle
Height
1.27mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
76.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
30
Number of Positions
30
Number of Rows
1
Packaging
Rail/Tube
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SL
Termination
Solder
Width
2.54mm
Compliance
RoHS
Compliant
