32-position, single-row socket strip with 2.54mm pitch. Features straight, top-entry, through-hole mounting with solder termination. Copper contacts with gold plating ensure reliable mating. Rated for 1A current and operates within a -55°C to 125°C temperature range. Black polymer insulation and housing.
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SL-132-T-12 technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Copper
Contact Plating
Gold
Contact Shape
Circular
Contact Type
Female Socket
Current Rating
1A
Depth
2.54mm
Gender
Receptacle
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
81.28mm
Max Current Rating
1A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
32
Number of Positions
32
Number of Rows
1
Orientation
Straight
Packaging
Bulk
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SL
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Samtec SL-132-T-12 Datasheet
Download the complete datasheet for Samtec SL-132-T-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

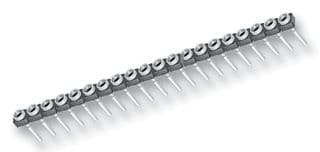

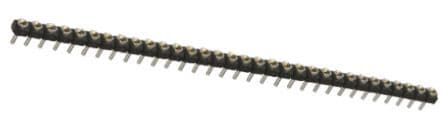

Product Images
