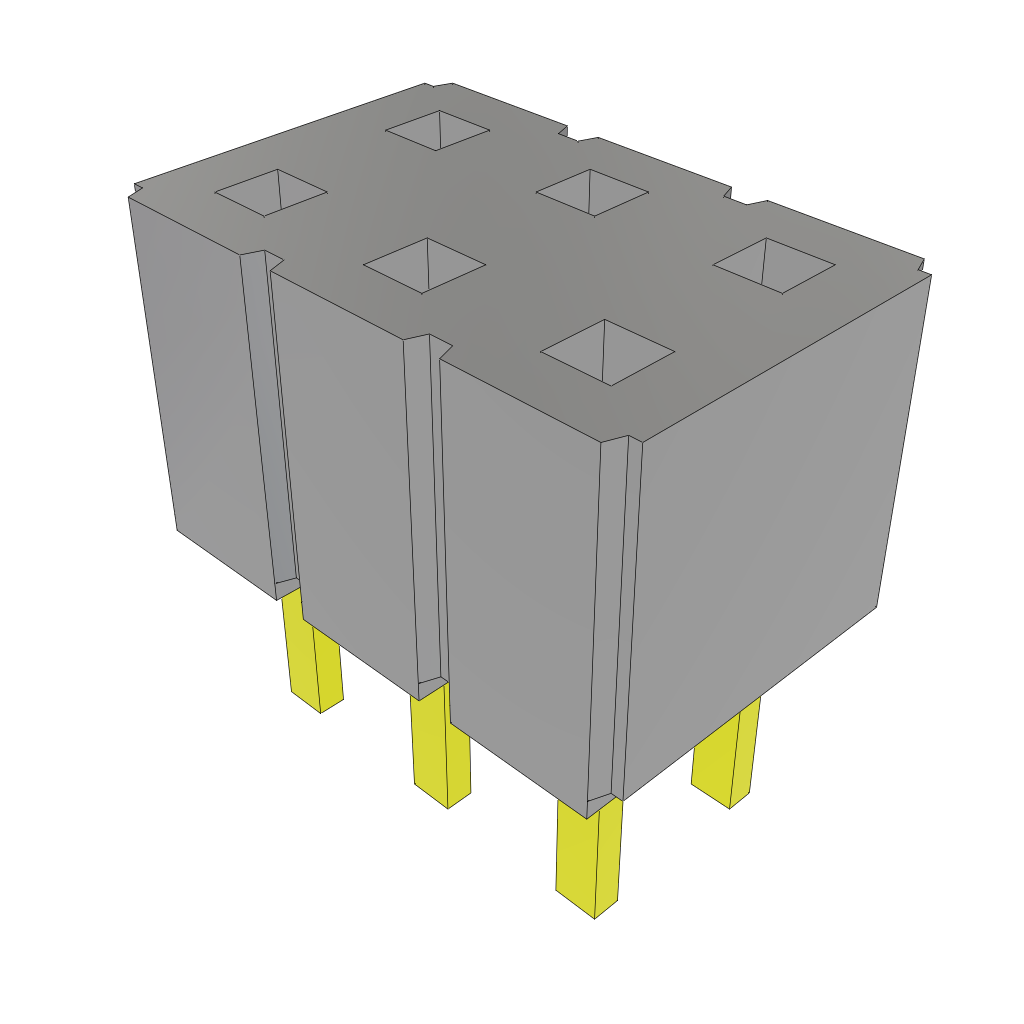

Board connector featuring 6 contacts arranged in 2 rows with a 2.54mm (0.1 inch) pitch. This female, straight socket offers solder termination with gold-plated bronze contacts and a black insulator. Rated for a maximum operating temperature of 125°C and a maximum AC voltage of 550V, it supports a maximum current of 7.1A. The connector has a depth and width of 4.95mm and a length of 7.62mm, with through-hole mounting. It is RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SLW-103-01-S-D technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Plating
Gold
Depth
4.95mm
Gender
Receptacle
Housing Color
Black
Lead Free
Lead Free
Length
7.62mm
Max Current Rating
7.1A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
550V
Mount
Through Hole
Number of Contacts
6
Number of Positions
6
Number of Rows
2
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
SLW
Termination
Solder
Width
4.95mm
Compliance
RoHS
Compliant
