14-position, 2-row socket strip connector with 2.54mm pitch. Features straight, through-hole mounting and solder termination. Offers a maximum current rating of 7.1A and a voltage rating of 550V AC. Constructed with bronze contacts and gold plating, housed in black. Operates within a temperature range of -55°C to 125°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SLW-107-01-G-D technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Plating
Gold
Depth
4.95mm
Housing Color
Black
Lead Free
Lead Free
Length
17.78mm
Max Current Rating
7.1A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
550V
Mount
Through Hole
Number of Contacts
14
Number of Positions
14
Number of Rows
2
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
SLW
Termination
Solder
Voltage Rating (AC)
550V
Width
4.95mm
Compliance
RoHS
Compliant
Datasheet
Samtec SLW-107-01-G-D Datasheet
Download the complete datasheet for Samtec SLW-107-01-G-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

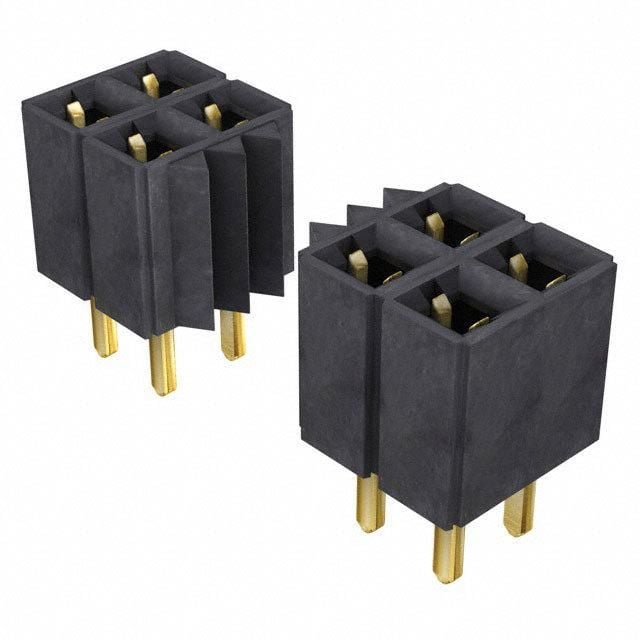

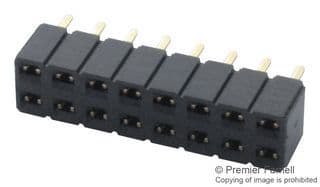

Product Images
