32-position, 2-row straight shrouded socket strip with 2.54mm pitch. Features gold-plated bronze contacts and a black housing. Rated for 7.1A maximum current and 550V AC maximum voltage. Operates across a temperature range of -55°C to 125°C. Through-hole mounting with solder termination.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SLW-116-01-S-D technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Gender | Receptacle |
| Height | 4.57mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 40.6mm |
| Max Current Rating | 7.1A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 550V |
| Mount | Through Hole |
| Number of Contacts | 32 |
| Number of Positions | 32 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | SLW |
| Termination | Solder |
| Width | 4.95mm |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SLW-116-01-S-D Datasheet
Download the complete datasheet for Samtec SLW-116-01-S-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

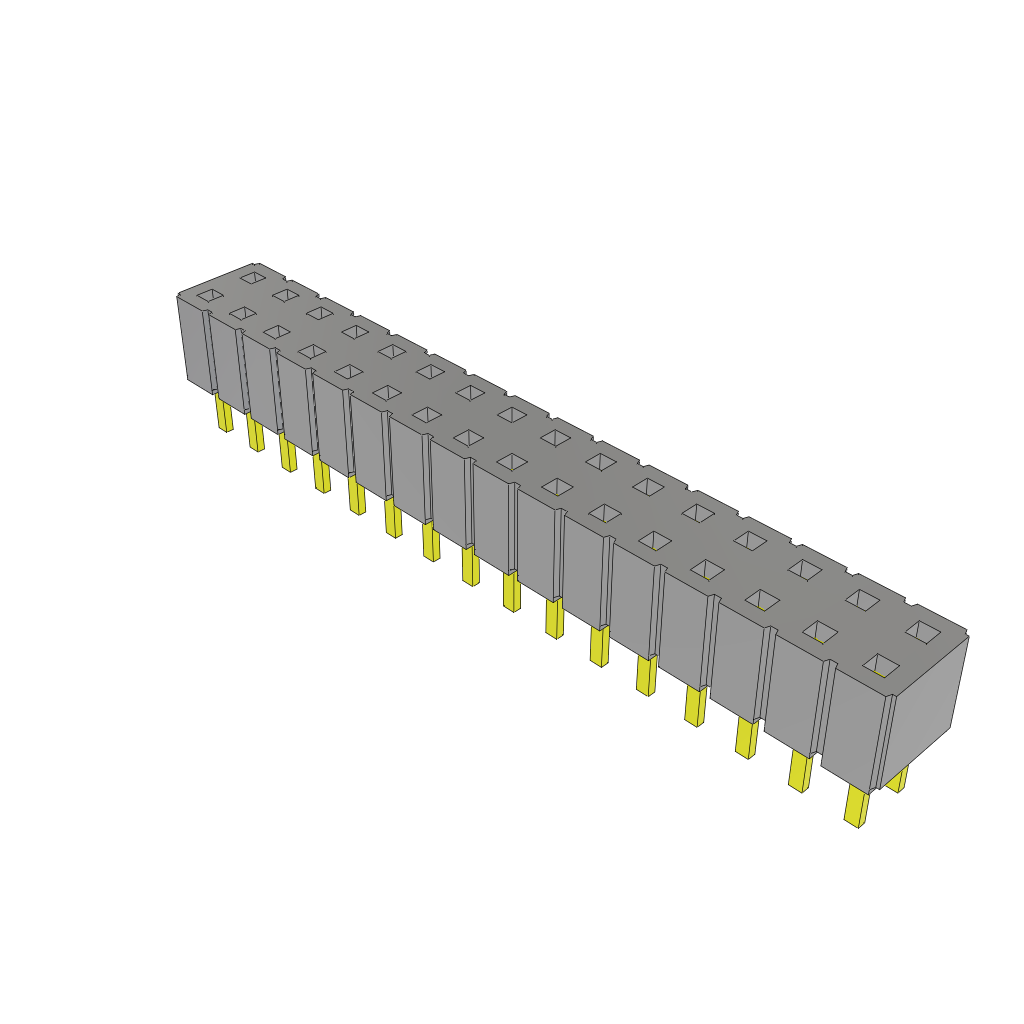

Product Images
