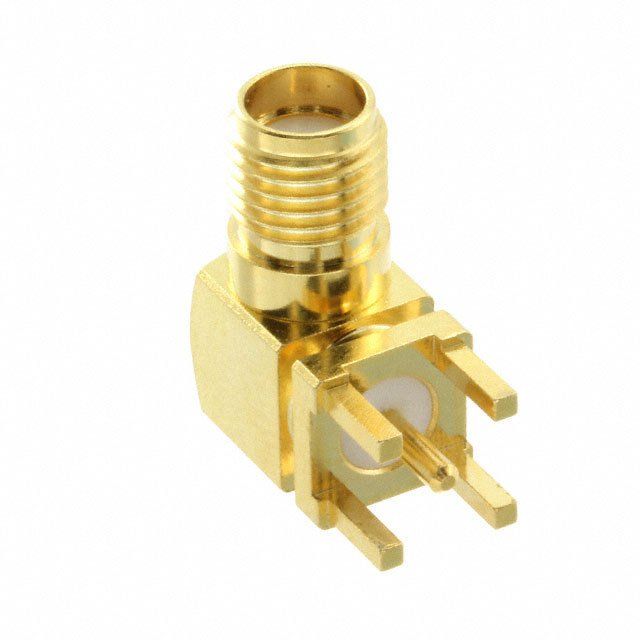

Right angle RF SMA connector for board mounting, featuring a brass body with gold plating and a PTFE dielectric. This 50 Ohm impedance connector supports up to 20GHz with a 335V rating and operates from -65°C to 125°C. It has a solder termination, gold-plated copper center contact, and a locking mechanism.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Samtec SMA-J-P-H-RA-TH1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Brass |
| Body Plating | Gold |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 7mm |
| Dielectric Material | PTFE |
| Housing Color | Gold |
| Impedance | 50R |
| Insulation Material | Polytetrafluoroethylene |
| Length | 15.1mm |
| Max Frequency | 20GHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole, Panel |
| Number of Ports | 1 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | Solder |
| Voltage Rating | 335V |
| RoHS | Compliant |
Download the complete datasheet for Samtec SMA-J-P-H-RA-TH1 to view detailed technical specifications.
