3-position, 1-row socket strip with 2.54mm pitch. Features gold-plated copper female socket contacts for mating. Through-hole mounting with solder termination. PBT insulation in black housing, operating temperature range of -55°C to 125°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SS-103-T-2-N technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Copper
Contact Plating
Gold
Contact Shape
Circular
Contact Type
Female Socket
Gender
Female
Height
3.3mm
Housing Color
Black
Insulation Color
Black
Insulation Material
PBT
Lead Free
Lead Free
Length
7.62mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
SS
Termination
Solder
Width
2.54mm
Compliance
RoHS
Compliant
Datasheet
Samtec SS-103-T-2-N Datasheet
Download the complete datasheet for Samtec SS-103-T-2-N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

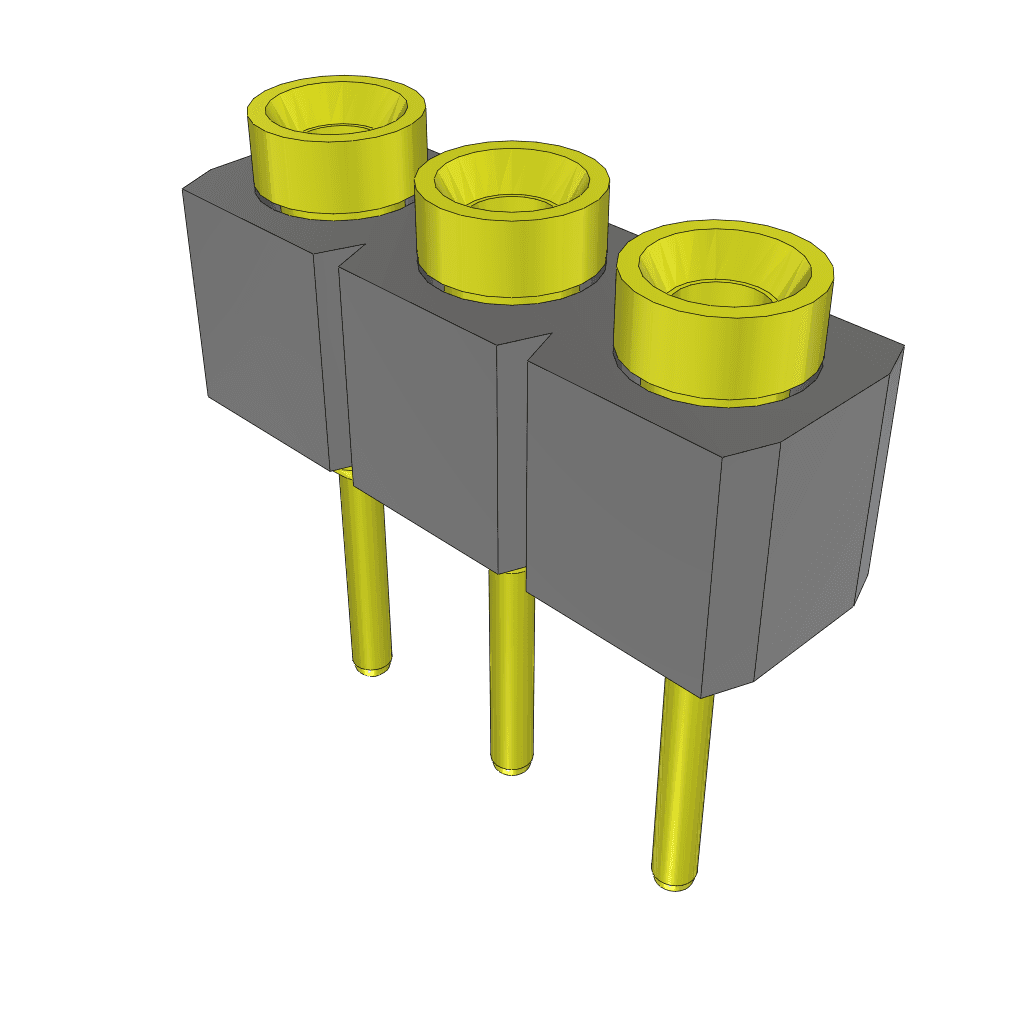

Product Images
