2-position, 1-row shrouded header with 2.54mm pitch for board-to-board applications. Features gold-plated bronze female socket contacts with a square shape and solder termination. Surface mountable with a side entry design, this component operates within a -55°C to 125°C temperature range and boasts a 405V AC / 572V DC voltage rating. Insulation is black polymer, and the unit is lead-free and RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec SSM-102-S-SH technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Gender
Female
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Packaging
Rail/Tube
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
SSM
Termination
Solder
Voltage Rating (AC)
405V
DC Rated Voltage
572V
Width
8.13mm
Compliance
RoHS
Compliant
Datasheet
Samtec SSM-102-S-SH Datasheet
Download the complete datasheet for Samtec SSM-102-S-SH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

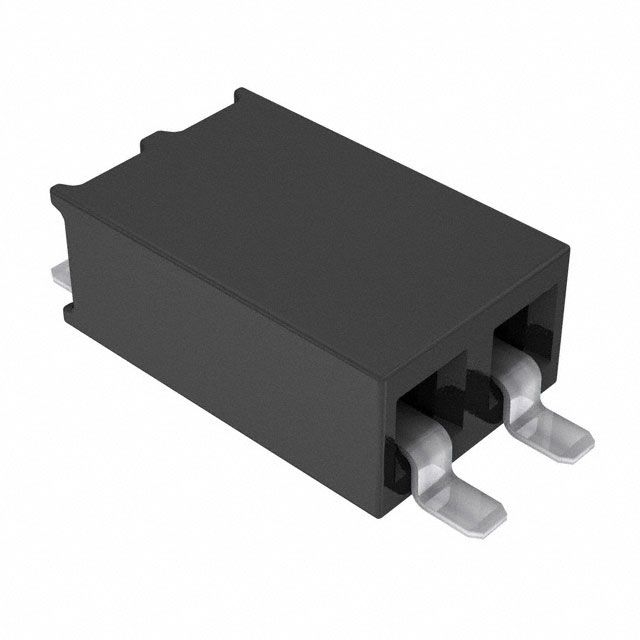

Product Images
