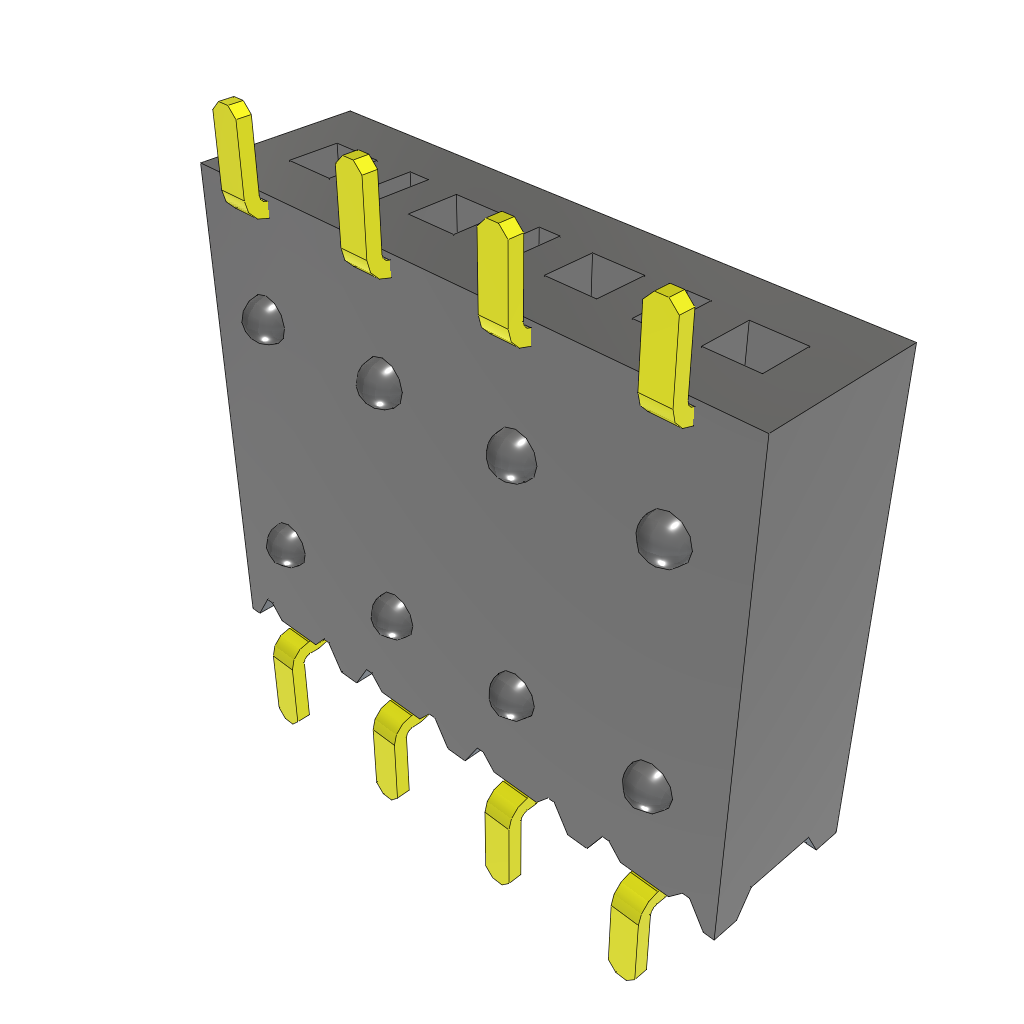

4-position, single-row shrouded header receptacle with a 2.54mm pitch. Features right-angle, side-entry surface mount termination with gold-plated bronze contacts. Rated for 4A current and 450V AC voltage, with a maximum operating temperature of 125°C. RoHS compliant and lead-free.
Voltage Rating450V
Current Rating4A
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec SSM-104-L-SH technical specifications.
General
Color
Black
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Current Rating
4A
Depth
8.13mm
Gender
Receptacle
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Lead Pitch
2.54mm
Length
10.16mm
Max Current Rating
6.9A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
450V
Mount
Surface Mount
Number of Contacts
4
Number of Positions
4
Number of Rows
1
Orientation
Right Angle
Packaging
Rail/Tube
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SSM
Termination
Solder
Voltage Rating
450V
Voltage Rating (AC)
405V
DC Rated Voltage
572V
Width
8.13mm
Compliance
RoHS
Compliant
Datasheet
Samtec SSM-104-L-SH Datasheet
Download the complete datasheet for Samtec SSM-104-L-SH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
