8-position, single-row shrouded header with a 2.54mm pitch. Features right-angle, side-entry surface mount termination for solder connection. Offers a 6.9A current rating and 450V voltage rating, with gold-plated bronze square female socket contacts. Operates within a -55°C to 125°C temperature range.
Voltage Rating450V
Current Rating6.9A
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec SSM-108-L-SH technical specifications.
General
Color
Black
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Current Rating
6.9A
Gender
Receptacle
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Lead Pitch
2.54mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
8
Number of Positions
8
Number of Rows
1
Orientation
Right Angle
Packaging
Rail/Tube
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SSM
Termination
Solder
Voltage Rating
450V
Voltage Rating (AC)
405V
DC Rated Voltage
572V
Compliance
RoHS
Compliant
Datasheet
Samtec SSM-108-L-SH Datasheet
Download the complete datasheet for Samtec SSM-108-L-SH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

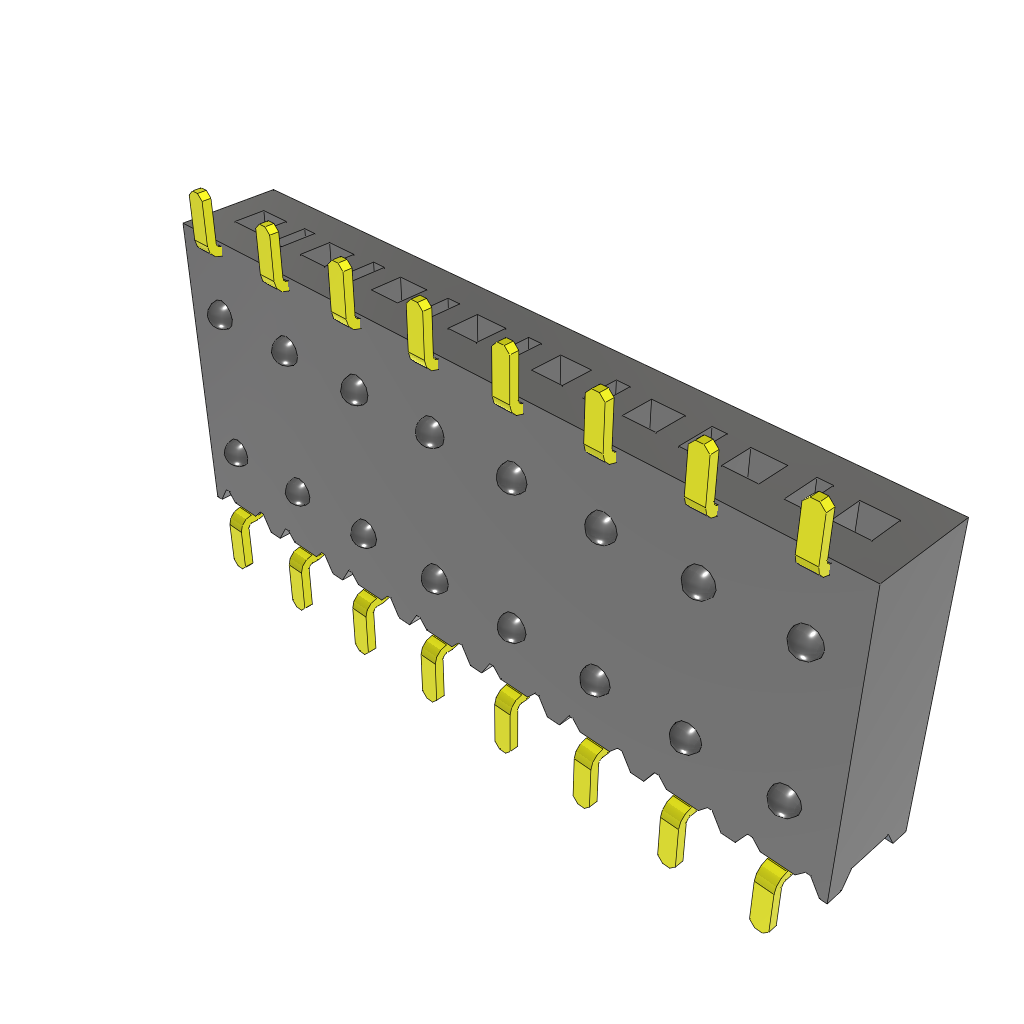

Product Images
