Surface mount socket strip featuring 9 positions on a 2.54mm pitch. This female connector offers a right-angle, side-entry design with solder termination. It boasts gold-plated bronze contacts with a square shape and a polymer insulation material. Operating temperature range is -55°C to 125°C, with a voltage rating of 405V AC and 572V DC.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec SSM-109-S-SH technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Gender
Female
Height
3.18mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
22.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
9
Number of Positions
9
Number of Rows
1
Packaging
Rail/Tube
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
SSM
Termination
Solder
Voltage Rating (AC)
405V
DC Rated Voltage
572V
Width
8.13mm
Compliance
RoHS
Compliant
Datasheet
Samtec SSM-109-S-SH Datasheet
Download the complete datasheet for Samtec SSM-109-S-SH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

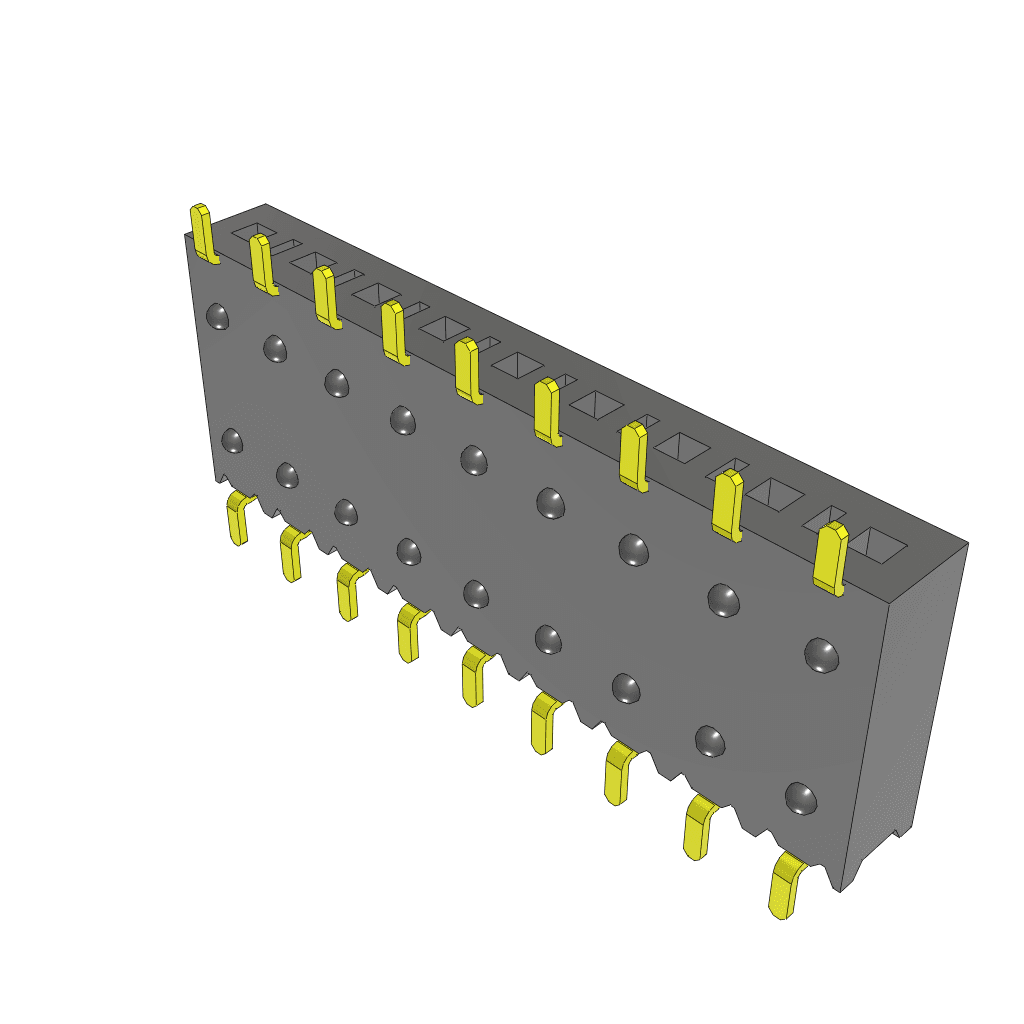

Product Images
