2.54mm pitch, single-row, 25-position shrouded header receptacle for surface mount applications. Features gold-plated bronze square female socket contacts with a rated operating temperature range of -55°C to 125°C. Black polymer insulation supports 405V AC and 572V DC ratings. Solder termination and side entry design facilitate efficient board-to-board connections. Packaged in rail/tube format.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec SSM-125-L-SH technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Gender | Receptacle |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 25 |
| Number of Positions | 25 |
| Number of Rows | 1 |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SSM |
| Termination | Solder |
| Voltage Rating (AC) | 405V |
| DC Rated Voltage | 572V |
| Width | 8.13mm |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SSM-125-L-SH Datasheet
Download the complete datasheet for Samtec SSM-125-L-SH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

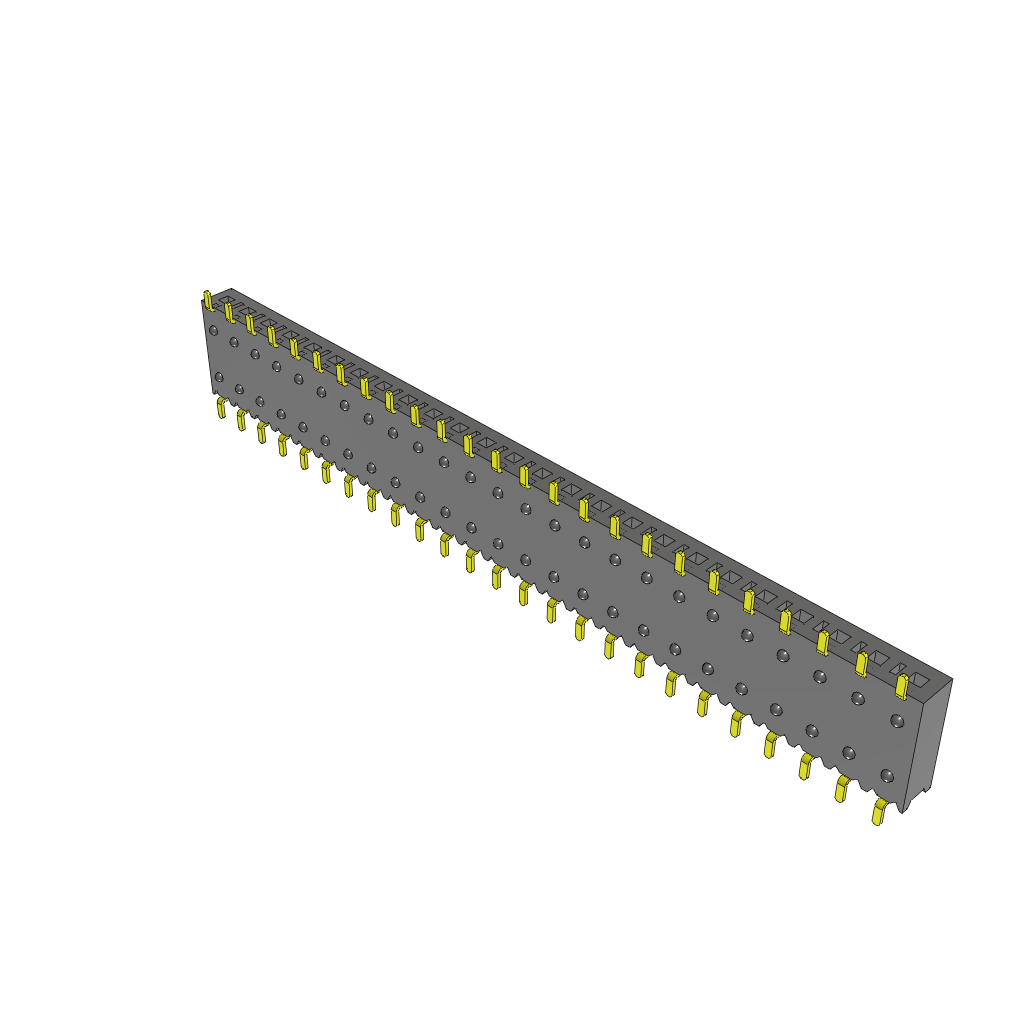

Product Images
