3-position, single-row socket strip with a 2.54mm pitch. Features forked, square bronze contacts with tin plating for mating. Rated for 7.6A max current and 550V AC, operating between -55°C and 105°C. Right-angle, through-hole mounting with solder termination. Black polymer housing and insulation, UL94 V-0 flammability rating.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SSQ-103-02-T-S-RA technical specifications.
General
Contact Finish - Mating
TIN
Contact Material
Bronze
Contact Plating
Tin
Contact Shape
Square
Contact Type
Forked
Flammability Rating
UL94 V-0
Gender
Female
Height
2.41mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Lead Free
Lead Free
Length
8.13mm
Max Current Rating
7.6A
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
550V
Mount
Through Hole
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Orientation
Right Angle
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
SSQ
Termination
Solder
Voltage Rating (AC)
550V
Width
8.51mm
Compliance
RoHS
Compliant
Datasheet
Samtec SSQ-103-02-T-S-RA Datasheet
Download the complete datasheet for Samtec SSQ-103-02-T-S-RA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

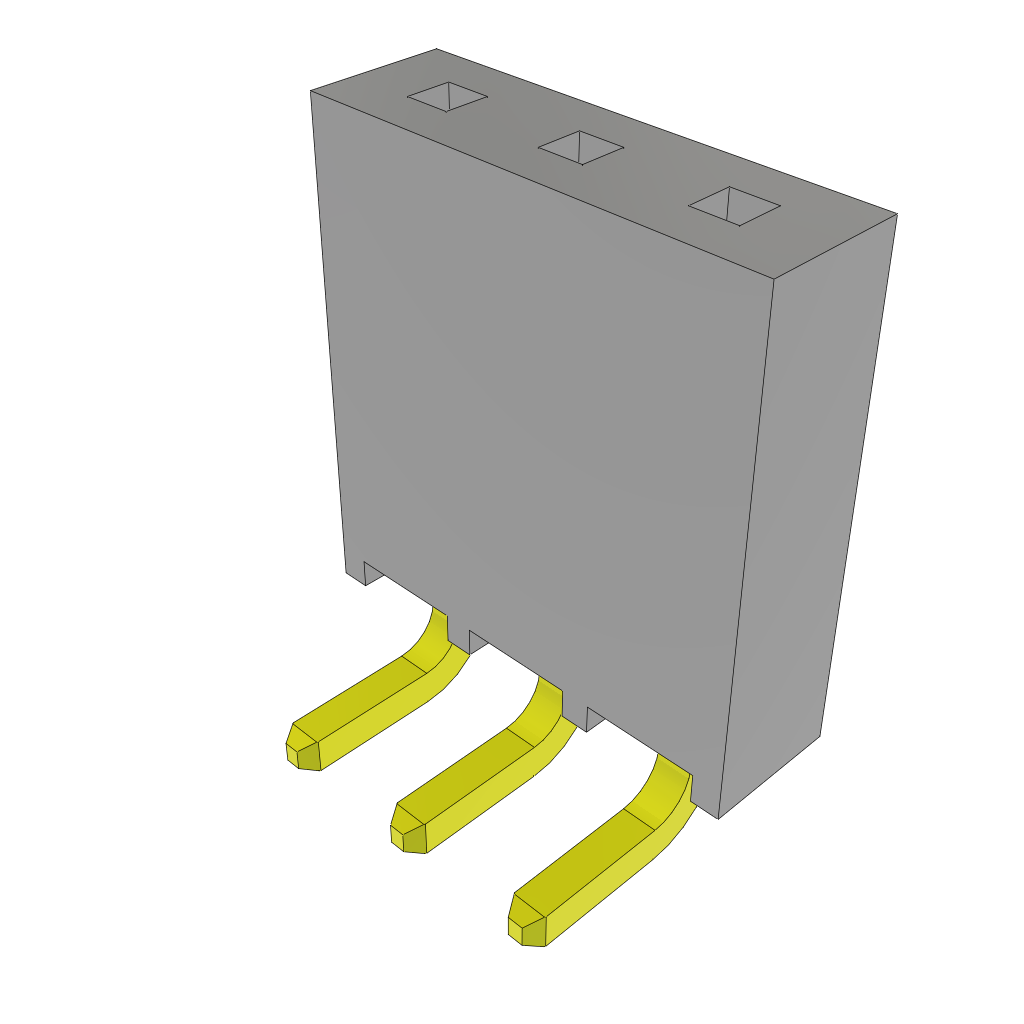

Product Images
