This Samtec SSW-105-01-G-D-LL is a 10-position, 2-row through-hole female socket header with gold contact plating and a black color. It features a pitch of 0.1inch and a row spacing of 0.1inch, with a maximum of 100 mating cycles. The header is RoHS compliant and has a solder termination. It is available in bulk packaging and is not radiation hardened.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SSW-105-01-G-D-LL technical specifications.
General
| Color | Black |
| Contact Plating | Gold |
| Contact Type | Female Socket |
| Mating Cycles | 100 |
| Mount | Through Hole |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Packaging | Bulk |
| Pitch | 0.1inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | SSW |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SSW-105-01-G-D-LL Datasheet
Download the complete datasheet for Samtec SSW-105-01-G-D-LL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

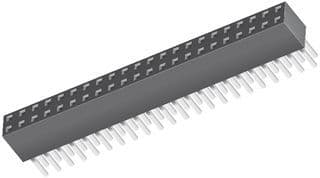

Product Images
