22-position, 2-row socket strip connector with 2.54mm pitch. Features female socket contacts made of bronze with gold plating, housed in black material. Rated for 6.9A max current and 550V AC max voltage, with a temperature range of -55°C to 125°C. Vertical, top-entry, through-hole mounting with solder termination.
MountingThrough Hole
Quick Jump:
Technical Specifications

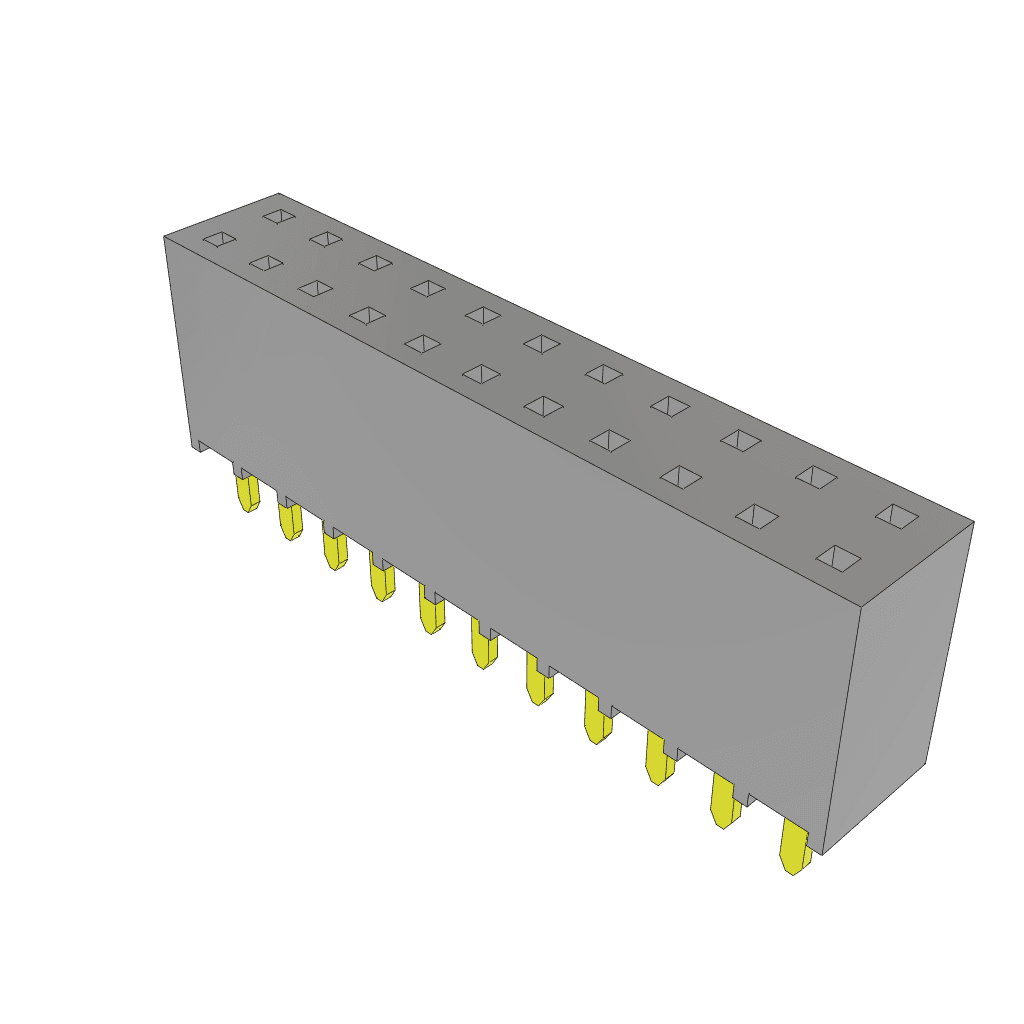

Samtec SSW-111-01-G-D technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Type | Female Socket |
| Gender | Receptacle |
| Height | 8.51mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 28.4mm |
| Mating Cycles | 100 |
| Max Current Rating | 6.9A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 550V |
| Mount | Through Hole |
| Number of Contacts | 22 |
| Number of Positions | 22 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | SSW |
| Termination | Solder |
| Width | 4.95mm |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SSW-111-01-G-D Datasheet
Download the complete datasheet for Samtec SSW-111-01-G-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
