14 Pos 2.54mm Receptacle, Vertical, Thru-Hole Socket Strip

Samtec

SSW-114-01-T-S

Name: SSW-114-01-T-S Samtec
Brand: Samtec
SKU: SSW-114-01-T-S

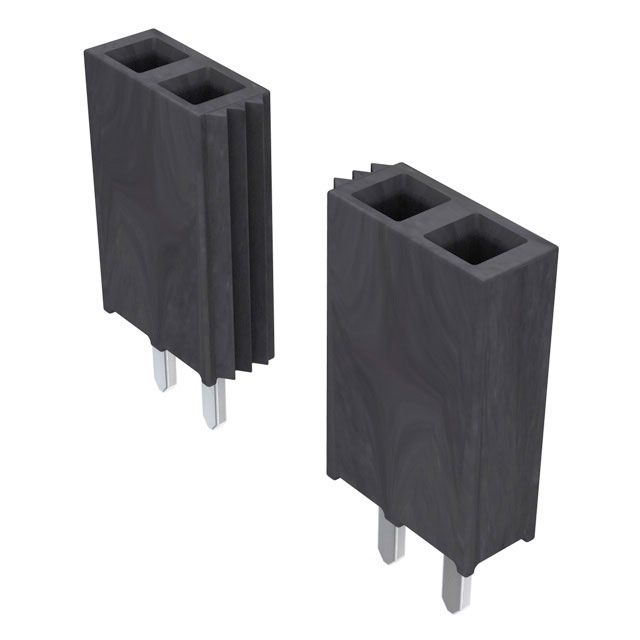

14 Pos 2.54mm Receptacle, Vertical, Thru-Hole Socket Strip

14-position, single-row socket strip with 2.54mm pitch. Features tin-plated bronze fork-shaped contacts for mating, with a matte tin plating. Through-hole mounting with solder termination, designed for vertical, top-entry orientation. Rated for 6.9A max current and 550V AC max voltage, with a DC rated voltage of 655V. Constructed with a black polymer insulation material and housing, achieving a UL94 V-0 flammability rating.

MountingThrough Hole

Quick Jump:

Pricing & Availability

Distributor	Package Type	Min Qty	1+	50+	100+	500+	Stock	Action
Samtec	Bulk	1	1.83	1.615	1.304	1.109	46 In Stock	View

Technical Specifications

Samtec SSW-114-01-T-S technical specifications.

General

Contact Finish - Mating	TIN
Contact Material	Bronze
Contact Plating	Tin, Matte
Contact Shape	Square
Contact Type	Forked
Depth	2.41mm
Flammability Rating	UL94 V-0
Gender	Receptacle
Housing Color	Black
Insulation Color	Black
Insulation Material	Polymer
Lead Free	Lead Free
Lead Length	2.64mm
Length	36.07mm
Max Current Rating	6.9A
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Max Voltage Rating (AC)	550V
Mount	Through Hole
Number of Contacts	14
Number of Positions	14
Number of Rows	1
Orientation	Vertical
Packaging	Bulk
Pitch	2.54mm
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	SSW
Termination	Solder
Voltage Rating (AC)	465V
DC Rated Voltage	655V
Width	2.41mm
