50-position, 2-row socket strip with 2.54mm pitch for board-to-board applications. Features female socket contacts made of bronze with gold plating, rated for 6.9A current and 550V voltage. This vertical, top-entry, through-hole mounted receptacle has a black housing and a solder termination. Operating temperature range is -55°C to 125°C, with a mating cycle rating of 100.
Voltage Rating550V
Current Rating6.9A
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SSW-125-01-G-D technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Type | Female Socket |
| Current Rating | 6.9A |
| Depth | 4.95mm |
| Gender | Receptacle |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 64.01mm |
| Mating Cycles | 100 |
| Max Current Rating | 6.9A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 550V |
| Mount | Through Hole |
| Number of Contacts | 50 |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | SSW |
| Termination | Solder |
| Voltage Rating | 550V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SSW-125-01-G-D Datasheet
Download the complete datasheet for Samtec SSW-125-01-G-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

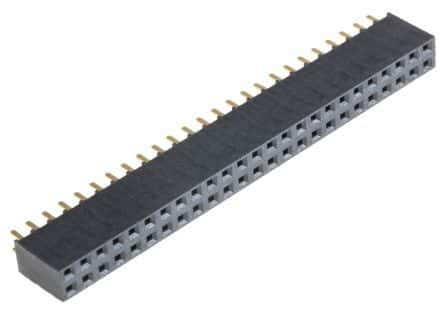

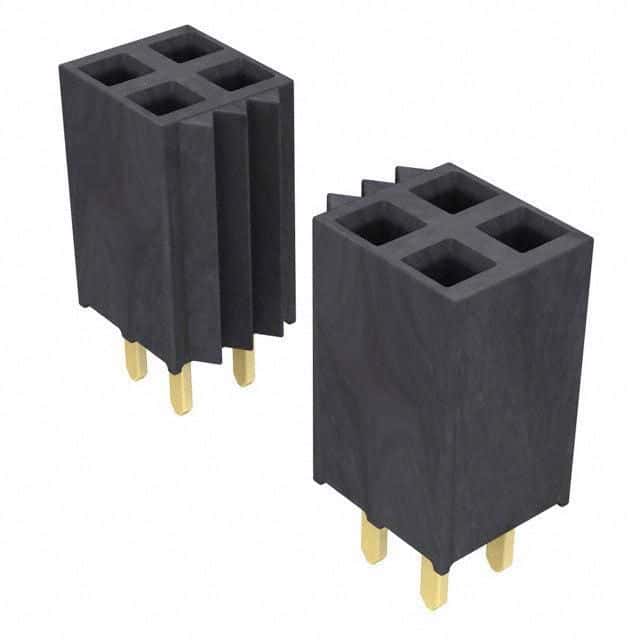

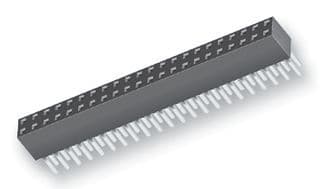

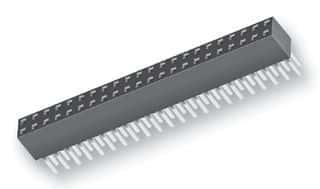

Product Images
