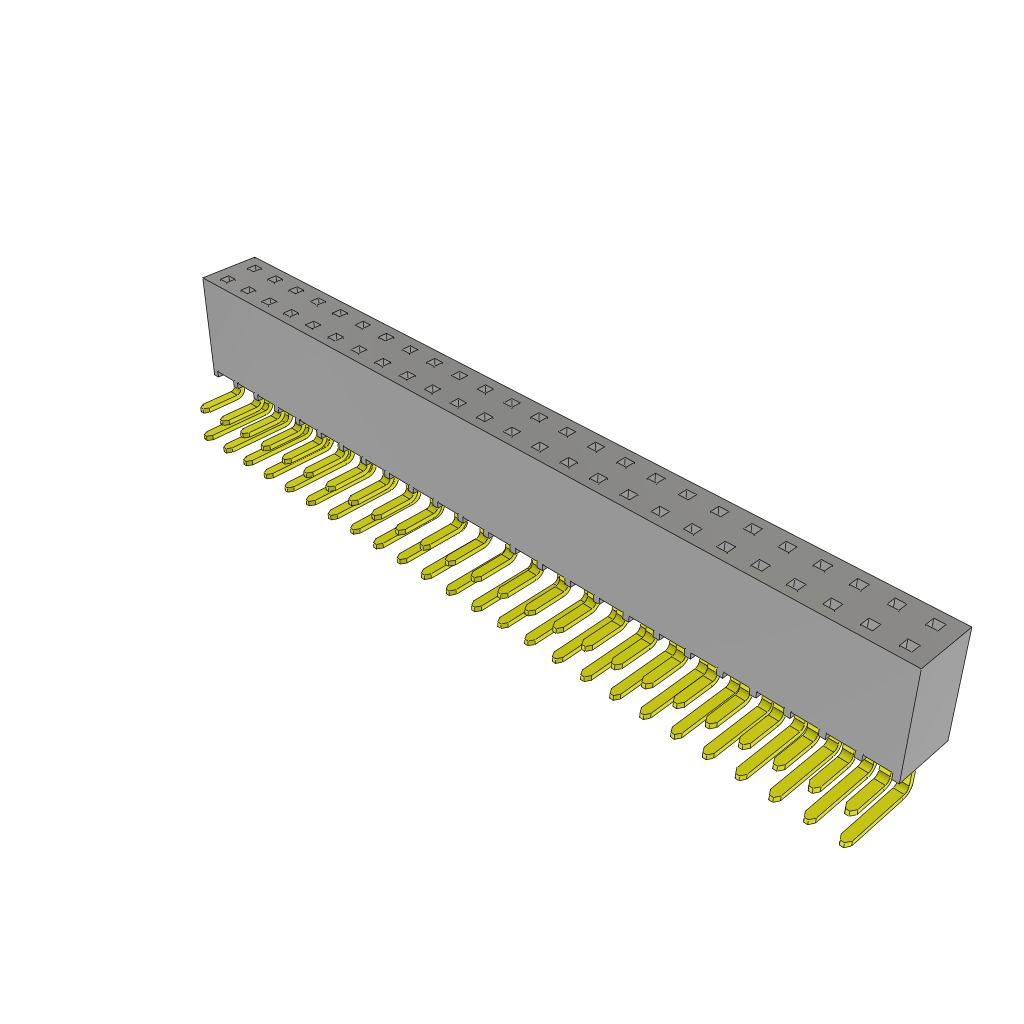

50-position, 2-row socket strip with 2.54mm pitch. Features gold-plated bronze fork-shaped contacts for reliable mating. Rated for 465V AC and 655V DC, operating between -55°C and 125°C. Through-hole mounting with side entry and solder termination. UL94 V-0 flammability rating and lead-free construction.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec SSW-125-22-G-D-RA technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Forked |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Lead Length | 2.54mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 50 |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Series | SSW |
| Termination | Solder |
| Voltage Rating (AC) | 465V |
| DC Rated Voltage | 655V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec SSW-125-22-G-D-RA Datasheet
Download the complete datasheet for Samtec SSW-125-22-G-D-RA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
